CLEANPREP HPLC COLUMNS

Preparative Liquid Chromatography

CleanPrep HPLC column for preparative chromatography parts are made of stainless steel and inert plastics to eliminate media corruption. They are designed for longer lifetimes, improved efficiency, and maximum loading.

CleanPrep ED HPLC column systems are available in 21.2mm, 30mm and 50mm internal diameters in a variety of lengths. The 21.2mm inner diameter column systems are rated to 12,000 psi and are available in either open dispersion or external dispersion fluid delivery to the media. Each CleanPrep HPLC column assembly consists of the appropriate size column tube, two frit cap assemblies with stainless steel frits, and two end fittings.

Download Brochure

Column Internal Diameter (ID)		Pressure Rating		Port Configuration
mm	inches	psi	bars	1/16" Parker Port	1/8" Parker Port
21.2	0.835	12,000	827	Standard
30.0	1.181	10,000	689	Standard
50.0	1.969	5,000	345	Optional	Standard

21.2mm HPLC Columns

21.2mm External Dispersion CleanPrep HPLC Columns	21.2mm Column Tubes	Column Internal Diameter (ID)	Column Tube Length	Packing Volume	Frit Porosity

Column Assembly Part Number	Column Tube Part Number	mm	mm	cm³	μm
CP-19212-005-20ED	2001-19212-005	21.2	50	17.6	2.0
CP-19212-0075-20ED	2001-19212-0075	21.2	75	26.5	2.0
CP-19212-010-20ED	2001-19212-010	21.2	100	35.3	2.0
CP-19212-015-20ED	2001-19212-015	21.2	150	52.9	2.0
CP-19212-025-20ED	2001-19212-025	21.2	250	88.2	2.0
CP-19212-030-20ED	2001-19212-030	21.2	300	105.9	2.0

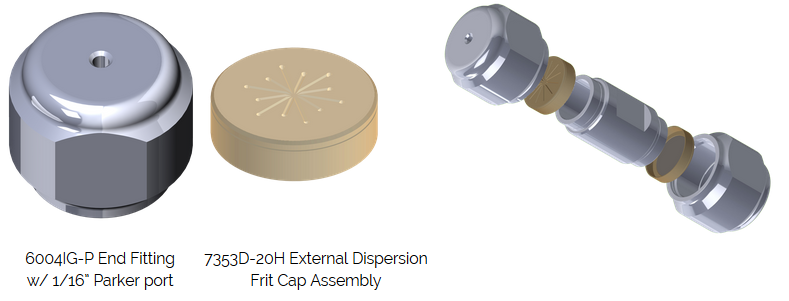

21.2mm ED HPLC Columns

21.2mm External Dispersion	21.2mm Column Tubes	Column Internal Diameter (ID)	Column Tube Length	Packing Volume	Frit Porosity

Column Assembly Part Number	Column Tube Part Number	mm	mm	cm³	μm
CP-19212-005-20ED	2001-19212-005	21.2	50	17.6	2.0
CP-19212-0075-20ED	2001-19212-0075	21.2	75	26.5	2.0
CP-19212-010-20ED	2001-19212-010	21.2	100	35.3	2.0
CP-19212-015-20ED	2001-19212-015	21.2	150	52.9	2.0
CP-19212-025-20ED	2001-19212-025	21.2	250	88.2	2.0
CP-19212-030-20ED	2001-19212-030	21.2	300	105.9	2.0

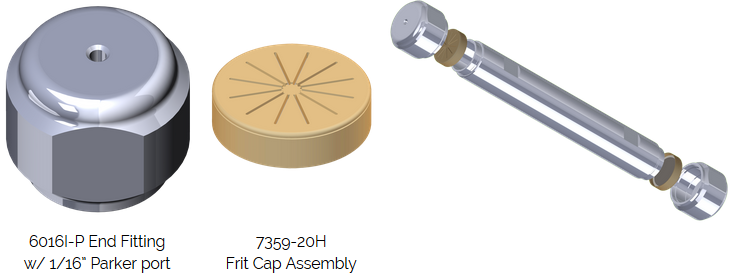

30mm ED HPLC Columns

30mm External Dispersion	30mm Column Tubes	Column Internal Diameter (ID)	Column Tube Length	Packing Volume	Frit Porosity

Column Assembly Part Number	Column Tube Part Number	mm	mm	cm³	μm
CP-24300-005-20	2001-24300-005	30.0	50	35.3	2.0
CP-24300-0075-20	2001-24300-0075	30.0	75	53.0	2.0
CP-24300-010-20	2001-24300-010	30.0	100	70.7	2.0
CP-24300-015-20	2001-24300-015	30.0	150	106.0	2.0
CP-24300-025-20	2001-24300-025	30.0	250	176.7	2.0
CP-24300-030-20	2001-24300-030	30.0	300	212.1	2.0

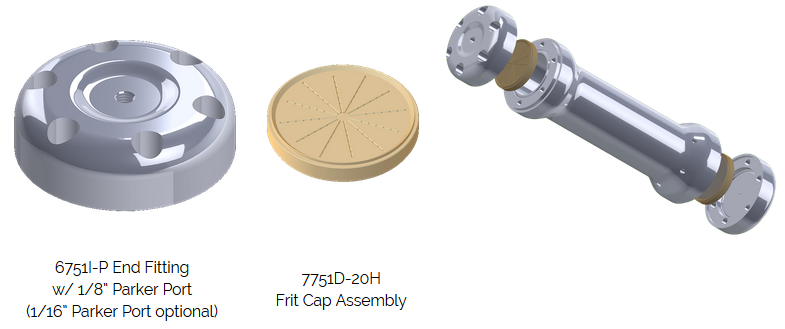

50mm ED HPLC Columns

50mm External Dispersion	50mm Column Tubes	Column Internal Diameter (ID)	Column Tube Length	Packing Volume	Frit Porosity

Column Assembly Part Number	Column Tube Part Number	mm	mm	cm³	μm
CP-56500-005-20	2001-56500-005	50.0	50	98.2	2.0
CP-56500-0075-20	2001-56500-0075	50.0	75	147.3	2.0
CP-56500-010-20	2001-56500-010	50.0	100	196.4	2.0
CP-56500-015-20	2001-56500-015	50.0	150	294.5	2.0
CP-56500-025-20	2001-56500-025	50.0	250	490.9	2.0
