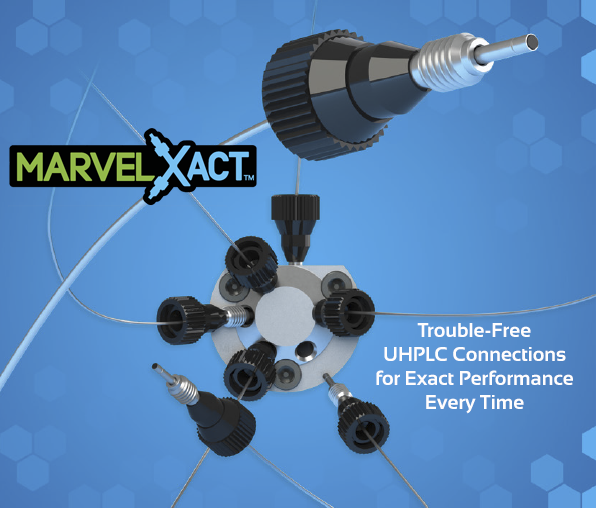

MarvelXACT™ UHPLC Connection Systems:
finger-tight with a "click" feedback

Ensure a Perfect Connection Every Time with the New MarvelXACT™
Fitting System for Trouble-Free Liquid Chromatography

Our expertly designed MarvelXACT connection  system takes the guesswork out of your process by eliminating the risk of under- and overtightening with our patented torque-limiting mechanism. This unique feature provides a haptic “click” feedback when it reaches the optimum torque, assuring a perfect connection every time. Built with sturdy, bioinert PEEK and stainless steel, MarvelXACT can be connected and disconnected more than 100 times.

MarvelXACT Features

Product Specifications
Pressure Capability19,000 psi (~1,310 bar) for routine use; up to 23,000 psi max over pressure for PEEK-Lined versions; up to 29,000 psi max over pressure for Stainless Steel versions
Installation MethodFinger-tighten until the first “click” feedback is received.
Tubing Type1/32” OD flexible 316 Stainless Steel with 1/16” OD rigid tube ends
Fitting Type10-32 threaded, PEEK fittings with 316 Stainless Steel threads
Wetted MaterialsPEEK-Lined versions: PEEK | Stainless Steel versions: PEEK and 316 Stainless Steel
NOTE: The above performance specifications apply to use with appropriately-designed receiving ports under optimal conditions, using water for the testing process. If different conditions are used, the expected pressure threshold will be different.
