Vacuum Pump & Controllers
For HPLC Degassing

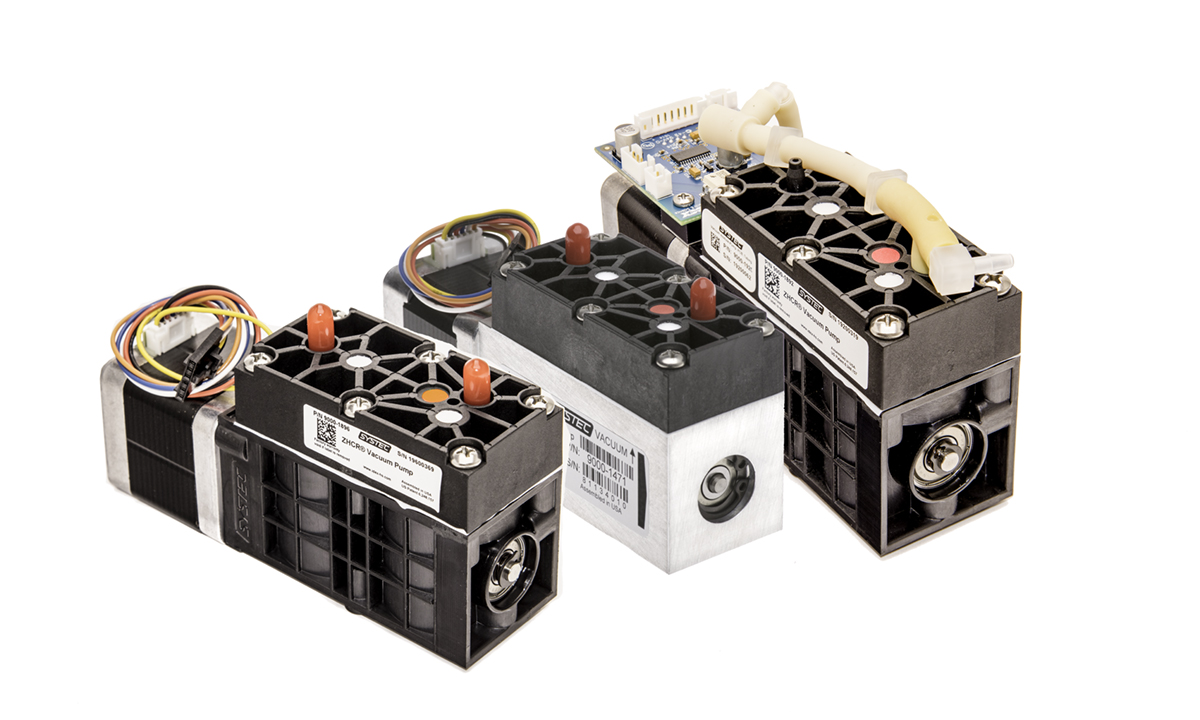

Biotech ZHRC vacuum pumps for degassing

Biotech ZHRC degassing vacuum pump

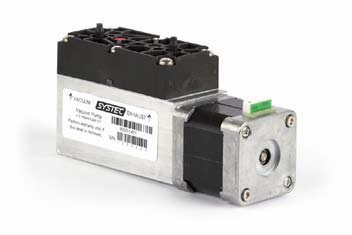

Systec ZHCR Vacuum degasser Pump

Biotech proudly presents the ZHCR® Zero Hysteresis – Constant Run stepper motor driven vacuum pump. This is the perfect pump for vacuum degassing of fluids containing organic solvents and really excels in vacuum stability, quietness and lifetime.

The ZHCR® pump is specifically designed and developed for membrane vacuum degassing of HPLC mobile phases and other mixed aqueous-organic fluids. Employing a micro-stepping RPM control strategy, permits the pump to run continuously, cycling between low and high speeds. The high speed provides quick pull-down, while the low speed sustains a consistent vacuum level.

Fluctuations in baseline due to vacuum hysteresis are eliminated by not having to repeatedly stop and start a single speed pump. This also greatly reduces wear and noise. The low wattage DC stepper motor runs quietly and coolly while also being very adaptable in its power supply requirements. The brushless motor is especially appropriate for an environment where solvents vapours may be present.

Flow path materials were chosen for their ruggedness and compatibility with exposure to organic mobile phase vapours. The need for a vent valve has been eliminated by the continuously purged head design and built-in anti-backflow duckbill check valves. The pump will start into a full vacuum, and vacuum will not be released in the event of a power loss. The entire pump assembly is compact in design.

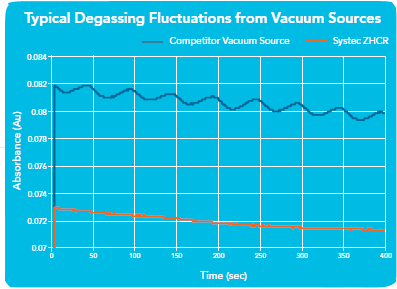

Fluctuation from vacuum pump sources

Features

  • Inert flow path
  • High vacuum level
  • Quiet stepper motor/ball bearing drive
  • Cool running DC motor
  • Long life expectancy at low rpm
  • Continuously purged two-stage teflon diaphragm head
  • Built-in anti-backflow check valves
  • Compact in size


CONTACT US FOR INQUIRIES OR MORE INFORMATION

Replacement Table for old pumps

Old Pump ArticleNew Replacement Pump Article
9000-08759000-1471 or 9000-1892; Since the tube connectors of 9000-1471 and 9000-1892 have a 1/8" instead of a 1/16" (on 9000-1067) you would need 2 straight tubing reducers from 1/8" to 1/16".
9000-10239000-1471 or 9000-1892
9000-10679000-1471 or 9000-1892; Since the tube connectors of 9000-1471 and 9000-1892 have a 1/8" instead of a 1/16" (on 9000-1067) you would need 2 straight tubing reducers from 1/8" to 1/16".
9000-11309000-1471 or 9000-1892
9000-12959000-1471 or 9000-1892
9000-14729000-1896
9000-17189000-2061
9000-18939000-2061
9000-19419000-2061
