Custom Designed Tubing Kits



How do you want your tubing kit?

We cut tubing more cost effective with our automatic cutting machine.

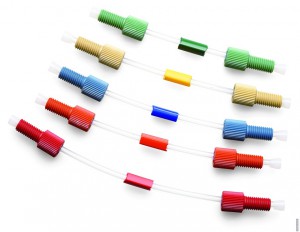

One type of tubing kit:
Mobile Phase bottle kits

With a production of 15.000 Mobile Phase Bottle Kits per annum we believe we can offer you a high quality concept used by leading LC producers and consisting of 4 sets of FEP tubings with 10 um SS mobile phase filter (other porosities upon request) and Upchurch original Super Flangeless Fittings + mobile phase bottle caps + colored tubing markers.

Every tubing is color coded and so is the nut. Kits are mounted and ready to be used – individually packed into PE bags. Standard length is 1,4 M – other lengths upon request.

Content of the kit:

  • Bottle Cap blue GL45, for 1/8” OD tubing 2 hole + 1 luer hole 4
  • Bottle Cap Plug, luer 4
  • Super Flangeless Ferrules ETFE for 1/8” OD tubing, yellow 4
  • Nut Super Flangeless 1/8” PEEK Blue 1
  • Nut Super Flangeless 1/8” PEEK Yellow 1
  • Nut Super Flangeless 1/8” PEEK Green 1
  • Nut Super Flangeless 1/8” PEEK Orange 1
  • FEP Tubing, 1/8” OD, 1/16” ID, per m 4 x 1,4 m
  • Solvent Filter SS 10 um with stem for 1/16” ID tube (40 ml/min) 4
  • Marker Tube Blue 1
  • Marker Tube Yellow 1
  • Marker Tube Green 1
  • Marker Tube Orange
