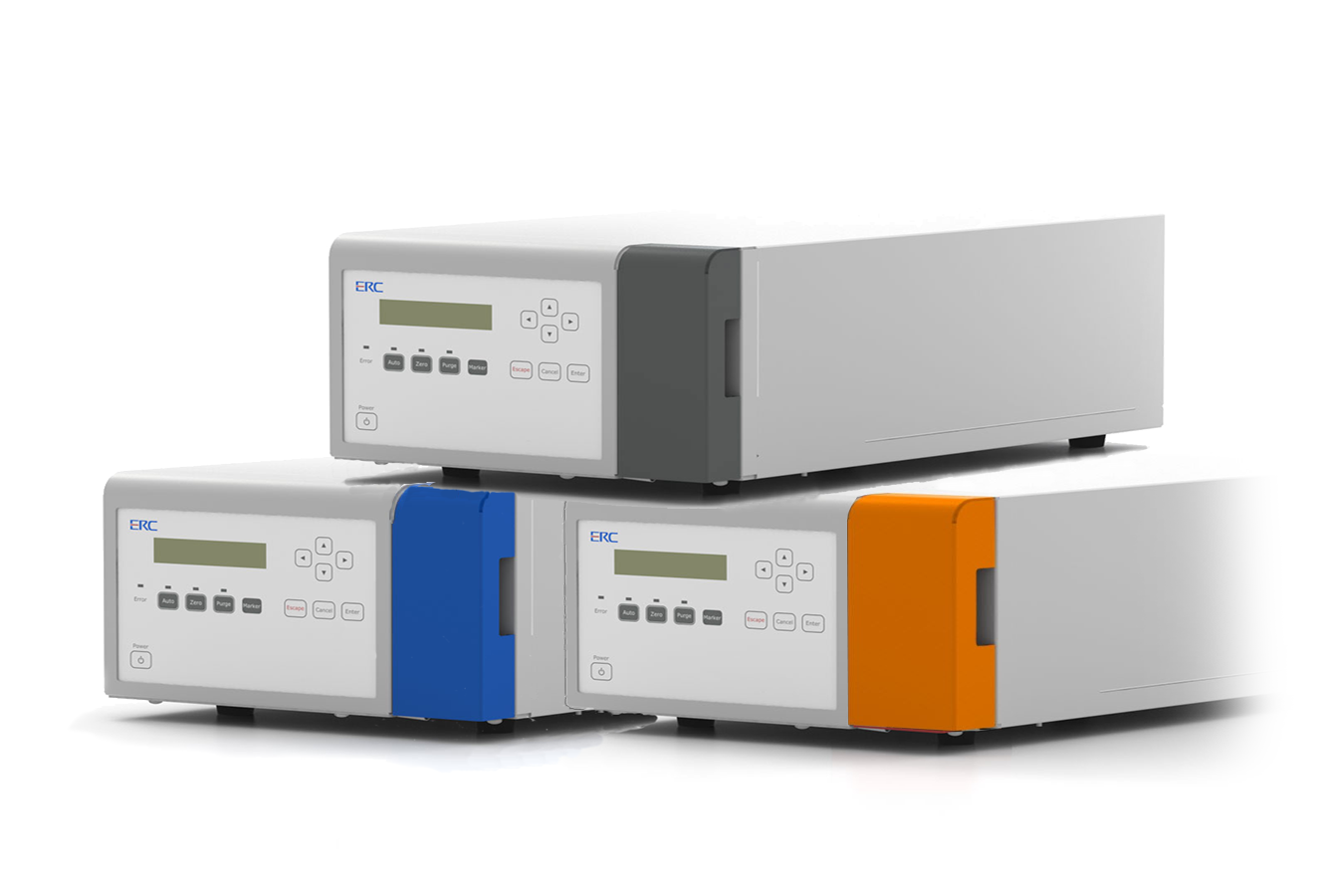

IDEX RefractoMax RI Detectors

The handling of our IDEX RefractoMax RI Detectors is easy given that the user can see the working conditions at a glance on the coloured display screen. Also, complex processes such as the change of eluent in the reference cell can be automated via the start-up button. Furthermore, simple instrument validation and calibration can also be carried out via the “HELP” function. A stable baseline is achieved in the shortest possible time by optimisation of the temperature control and thermal isolation. Due to its baseline stability, the RefractoMax shows a superior signal to noise ratio. Nearly no drift appears even at long analysis times. The detector is equipped with a leak sensor that switches off the pump automatically. External inlet and outlet ports, allow communication with all chromatography systems. Our IDEX RefractoMax RI is available in three flow rate options:

RefractoMax Micro:

flow rates: 0.1 – 1 mL/min

RefractoMax Analytical:

flow rates: 1 – 5 mL/min

RefractoMax Semi-Prep:

flow rates: 1 – 50 mL/min


  •   Key features:
    • simple handling
    • accurately tempered
    • measuring cell
    • high sensitivity
    • safety features
    • various automated functions
RefractoMax Specs

  • IDEX RefractoMax 521 RI Detector Analytical

    p_sku_RefractoMax521

    The RefractoMax analytical is a sensitive refractive index detector suitable for detecting compounds with little or no UV activity such as sugars, lipids or polymers. The instrument is designed for use in analytical HPLC with flow rates of 1 – 5 ml/min. Delivery includes a 8 µl flow cell.

    Go to shop

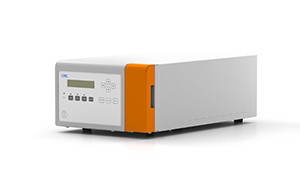

  • IDEX RefractoMax 522 RI Detector Semi-Prep

    RefractoMax522

    The RefractoMax Semi-Prep is a sensitive refractive index detector suitable for detecting compounds with little or no UV activity such as sugars, lipids or polymers. The instrument is designed for use in analytical HPLC with flow rates of 1 – 50 ml/min. Delivery includes a 8 µl flow cell.

    Go to shop

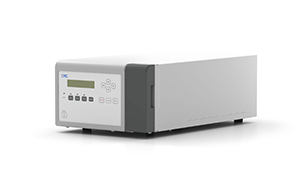

  • IDEX RefractoMax 524 RI Detector Micro

    RefractoMax524

    The RefractoMax Micro is a sensitive refractive index detector suitable for detecting compounds with little or no UV activity such as sugars, lipids or polymers. The instrument is designed for use in analytical HPLC with flow rates of 0.1 – 1 ml/min. Delivery includes a 2.5 µl flow cell.

    Go to shop
