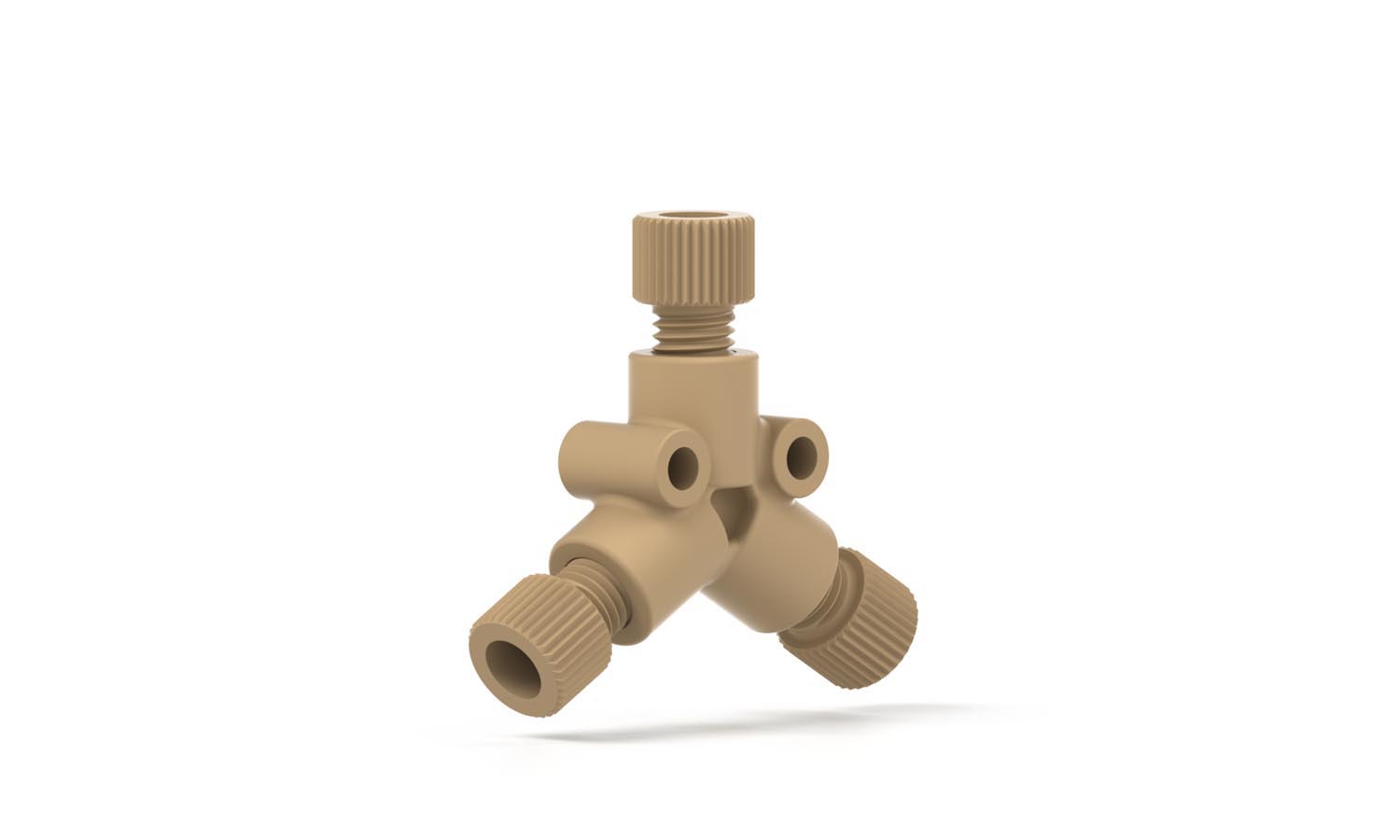

Y Assembly PEEK 1/4-28 .060in
Description
Our PEEK Y Connector assembly is for 1/8″OD tubing. Our Y Connectors can split a stream or join two streams together similar to a “T” design. Unlike the “T”, the geometry of the “Y” design reduces turbulence and improves analytical results. This assembly comes with (3)OD x P-335 Flangeless Fittings. Brochure
Additional information
| For Tubing OD (in) | 1/8 |
|---|---|
| Material | PEEK |
| Pressure Rating Max (bar) | 34 |
| Pressure Rating Max (psi) | 500 |
| Swept Volume (µL) | 13.6 |
| Thread Port Configuration Flat-Bottom | 1/4-28 |
| Thru hole (in) | 0.060 |
| Thru hole (mm) | 1.50 |
