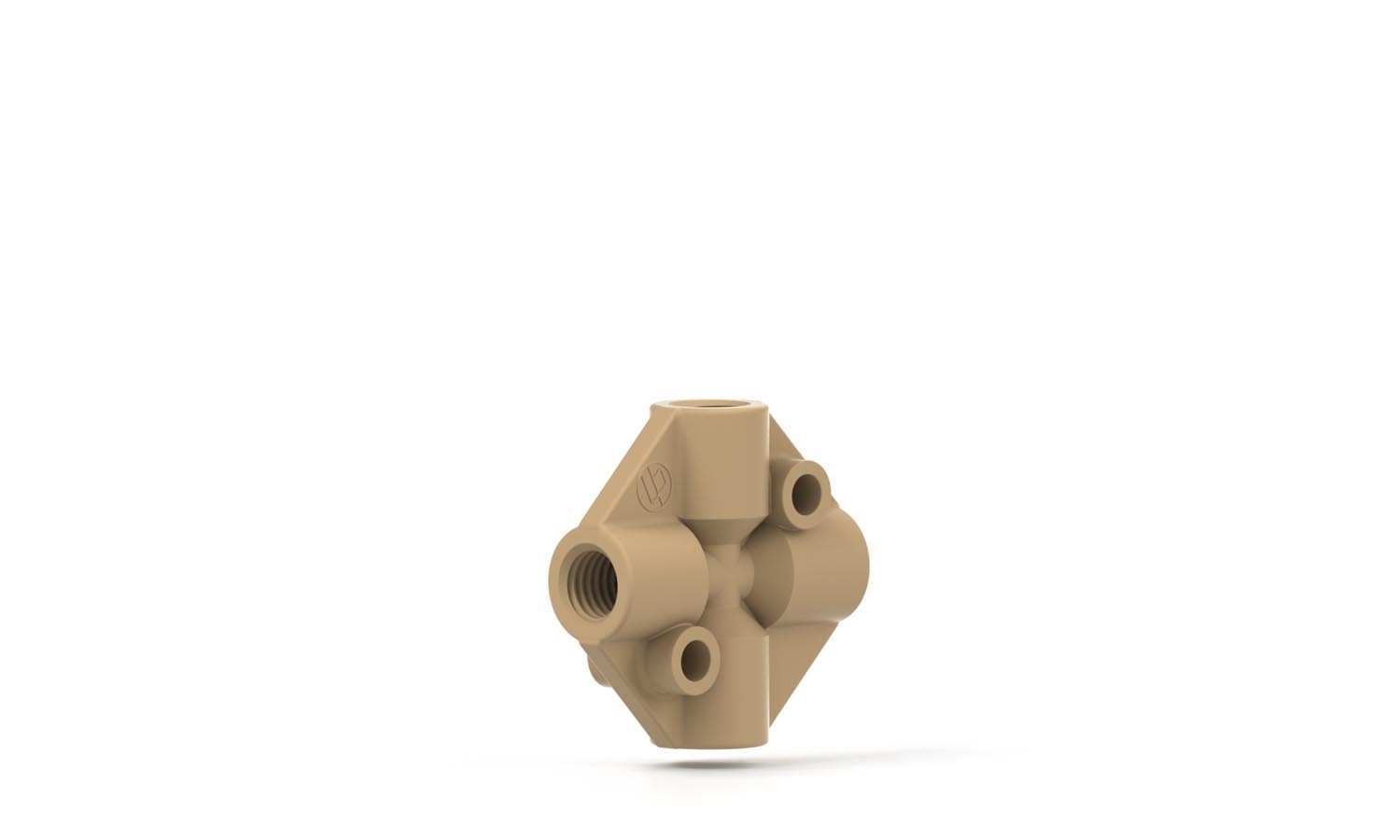

Cross Assembly PEEK .020in thru hole
Description
PEEK Low Pressure Cross Assembly is strong and has a durable handling a pressure ratings of 1000 psi (69 bar). It has excellent chemical resistance to commonly used solvents. Our Cross Assembly is equipped with convenient mounting holes. This assembly comes complete with (4) P-235 Nuts. Brochure
Additional information
| For Tubing OD (in) | 1/16 |
|---|---|
| Material | PEEK |
| Pressure Rating Max (bar) | 69 |
| Pressure Rating Max (psi) | 1000 |
| Swept Volume (µL) | 3.8 |
| Thread Port Configuration Flat-Bottom | 1/4-28 |
| Thru hole (in) | 0.020 |
| Thru hole (mm) | 0.50 |
