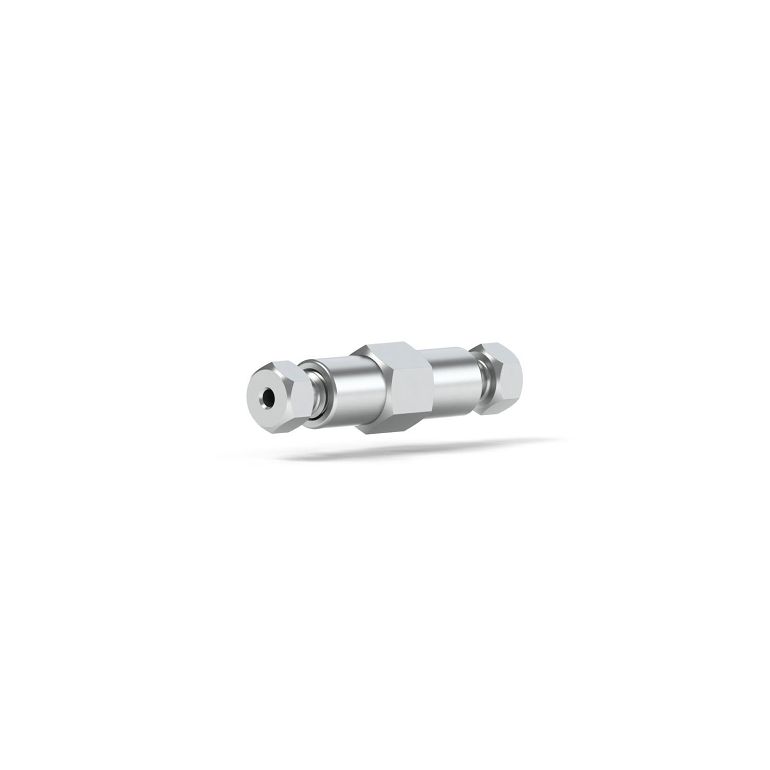

VHP Stainless Steel Union Assembly ZDV .020 thru hole Single

Description

VHP Stainless Steel Unions are precision machined from 316 stainless steel. Our mechanically strong and reliable union offers zero dead volume (ZDV) allowing tubing to be joined without interrupting the fluidic path. It is designed for 1/16″OD tubing, thru-hole of .020 and has a 10-32 Coned thread port configuration. It comes with (2) U-400/U-401 stainless steel fittings. It also comes in a 10 Pack.

Additional information

For Tubing OD (in)

1/16

Material

Stainless Steel

Pressure Rating Max (bar)

1380

Pressure Rating Max (psi)

20000

Thread Port Configuration Coned

10-32

Thru hole (in)

0.020

Thru hole (mm)

0.50
