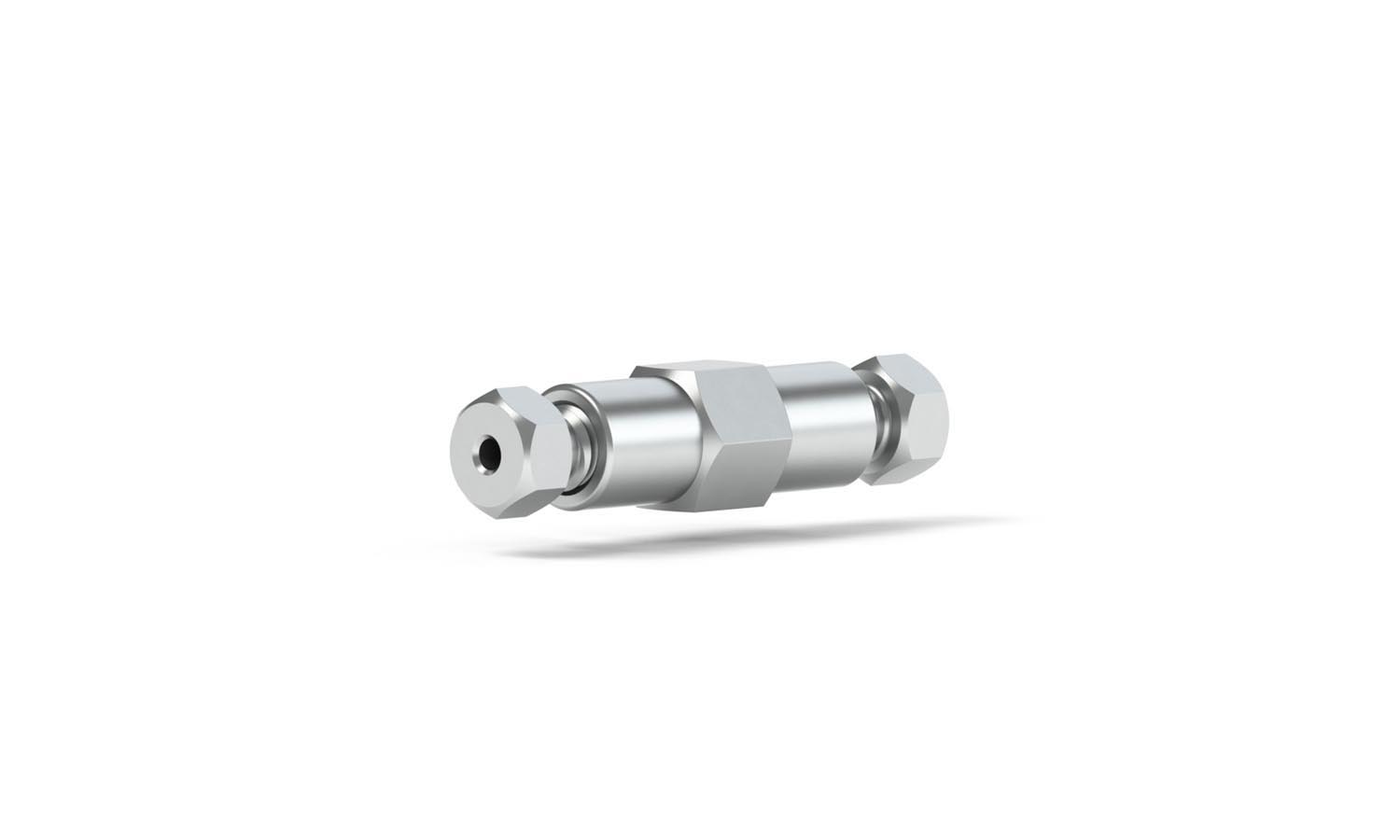

VHP+ Stainless Steel Union Assembly 10-32 1/16
Description
Our VHP+ Stainless Steel Union Assembly is precision machined from 316 stainless steel. Our mechanically strong and reliable union assembly offers true zero dead volume (ZDV) allowing tubing to be joined without interrupting the fluidic path. It is designed for 1/16″OD tubing , thru-hole of .010 and has a 10-32 Coned thread port configuration. It comes with (2)VHP-200 . Brochure
Additional information
| For Tubing OD (in) | 1/16 |
|---|---|
| Material | Stainless Steel |
| Pressure Rating Max (bar) | 2070 |
| Pressure Rating Max (psi) | 30000 |
| Thread Port Configuration Coned | 10-32 |
| Thru hole (in) | 0.010 |
| Thru hole (mm) | 0.25 |
