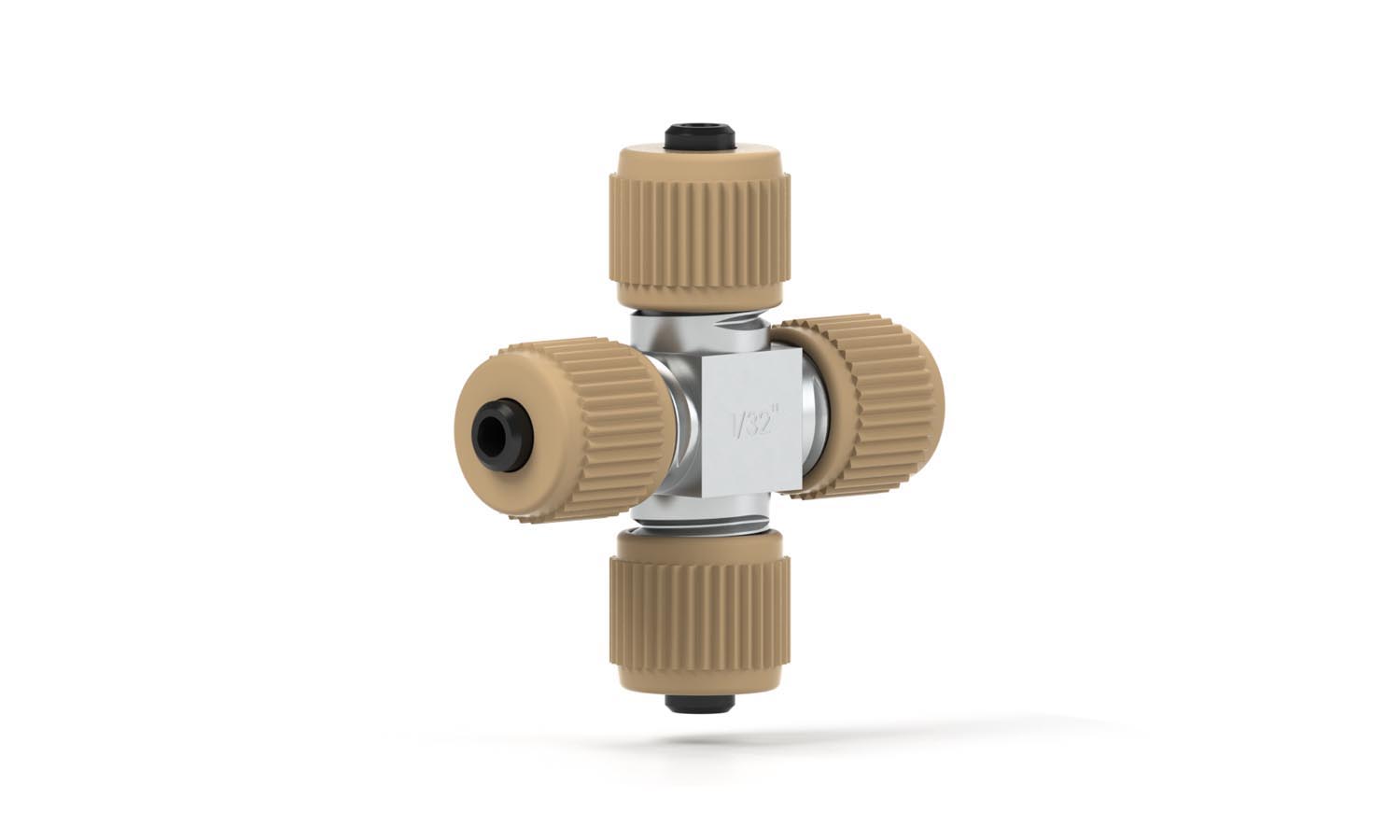

VHP MicroCross Assembly for 1/32″ OD
Description
Our VHP MicroCross Assembly’s unique design creates a direct connection for tubing; no sleeves required. It is manufactured from durable stainless steel and features a small thru-hole and very low internal volume. Stainless steel delivers excellent chemical compatibility and conductivity making it an ideal choice when electrical applications are in use. It is for 1/32″OD tubing and has a thread of 5/16-24 Coned. It comes with (4) PK-112 and (4)P-416 Fittings. Brochure
Additional information
For Tubing OD (in) | 1/32 |
---|---|
Material | PEEK/Stainless Steel |
Pressure Rating Max (bar) | 1034 |
Pressure Rating Max (psi) | 15000 |
Swept Volume (nL) | 101 |
Thread Port Configuration Coned | 5/16-24 |
Thru hole (in) | 0.010 |
Thru hole (mm) | 0.25 |
