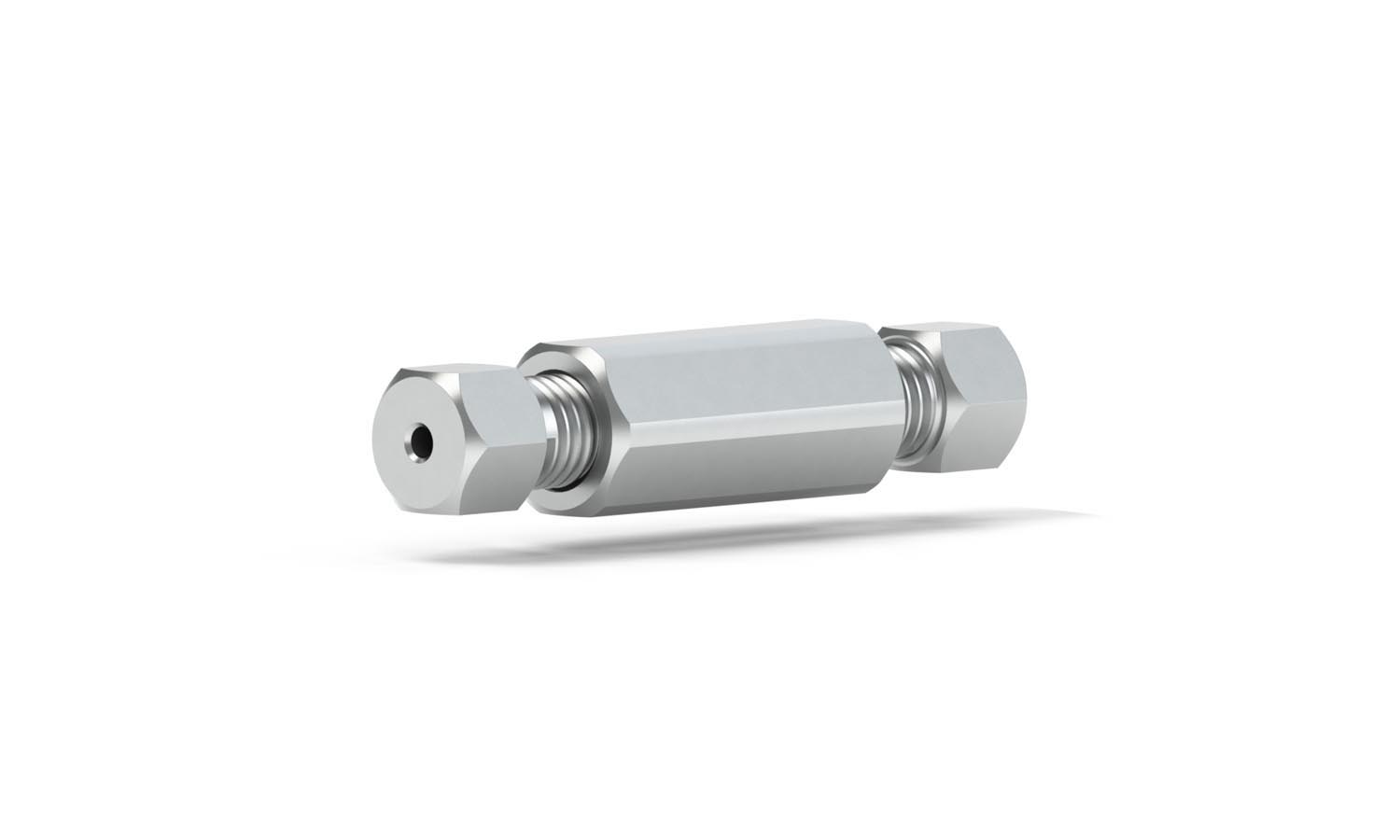

Union Assembly ZDV – SSI Type
Description
Our ZDV Union Assembly is SSI Compatible and precision machined from 316 stainless steel. Our mechanically strong and reliable union offers zero dead volume (ZDV) allowing tubing to butt up against each other without interrupting the fluidic path. It is designed for 1/16″OD tubing and has a 1/4-28 Coned thread port configuration. It comes with (2) U-350/U-351 stainless steel fittings.
Additional information
| For Tubing OD (in) | 1/16 |
|---|---|
| Material | Stainless Steel |
| Pressure Rating Max (bar) | 1380 |
| Pressure Rating Max (psi) | 20000 |
| Thread Port Configuration Coned | 1/4-28 |
| Thru hole (in) | 0.020 |
| Thru hole (mm) | 0.50 |
