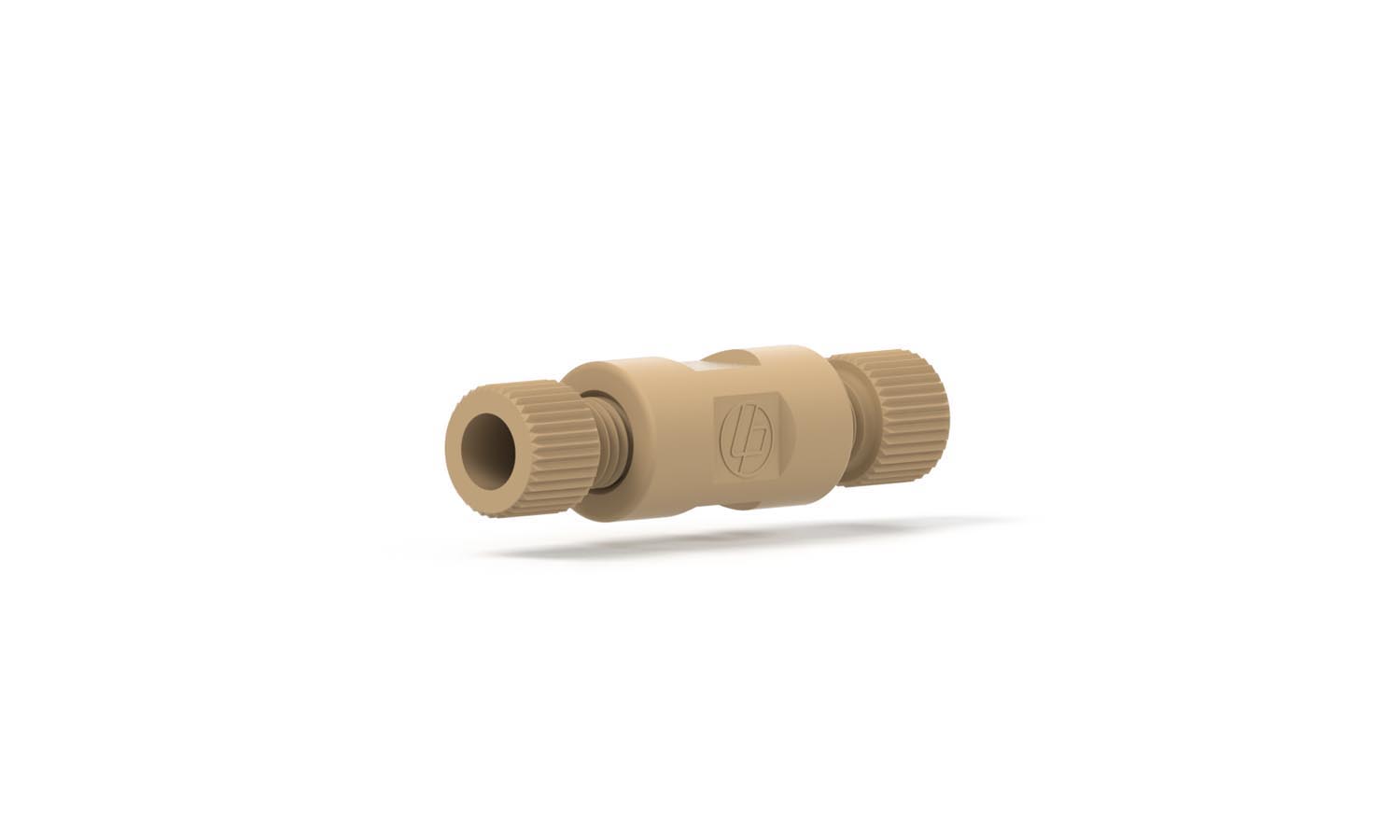

Union Assembly PEEK .050 thru hole, for 1/8″ OD

Description

Our low pressure PEEK Union Assembly efficiently connects tubing in low pressure regions of a system where a dependable connection is imperative. Made from resilient PEEK it delivers excellent solvent resistance. It is designed for 1/8″OD Tubing, has a 1/4-28 Flat Bottom thread port style and comes in natural color. It includes (2) OD x P-335 Flangeless Short Nuts. Brochure

Additional information

Color

Natural

For Tubing OD (in)

1/8

Material

PEEK

Pressure Rating Max (bar)

69

Pressure Rating Max (psi)

1000

Swept Volume (µL)

2.57

Thread Port Configuration Flat-Bottom

1/4-28

Thru hole (in)

0.050

Thru hole (mm)

1.25
