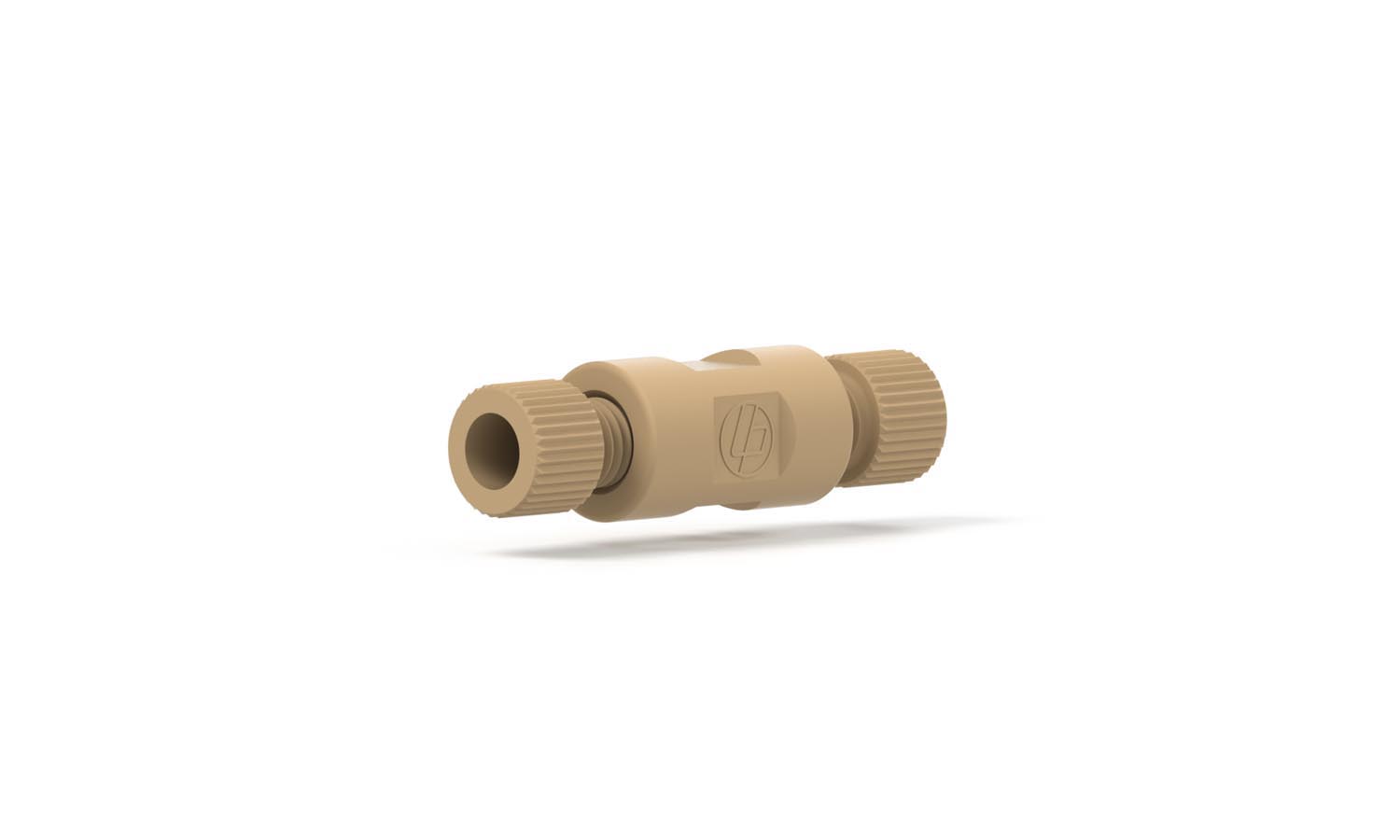

Union Assembly PEEK .020 thru hole, for 1/16″ OD”
Description
Our low pressure PEEK Union Assembly efficiently connects tubing in low pressure regions of a system where a dependable connection is imperative. Made from resilient PEEK it delivers excellent solvent resistance. It is designed for 1/16″OD Tubing, has a 1/4-28 Flat Bottom thread port style and comes in natural color. It includes (2)OD x P-235 Flangeless Nuts. Brochure
Additional information
Color | Natural |
---|---|
For Tubing OD (in) | 1/16 |
Material | PEEK |
Pressure Rating Max (bar) | 69 |
Pressure Rating Max (psi) | 1000 |
Swept Volume (µL) | 0.41 |
Thread Port Configuration Flat-Bottom | 1/4-28 |
Thru hole (in) | 0.020 |
Thru hole (mm) | 0.50 |
