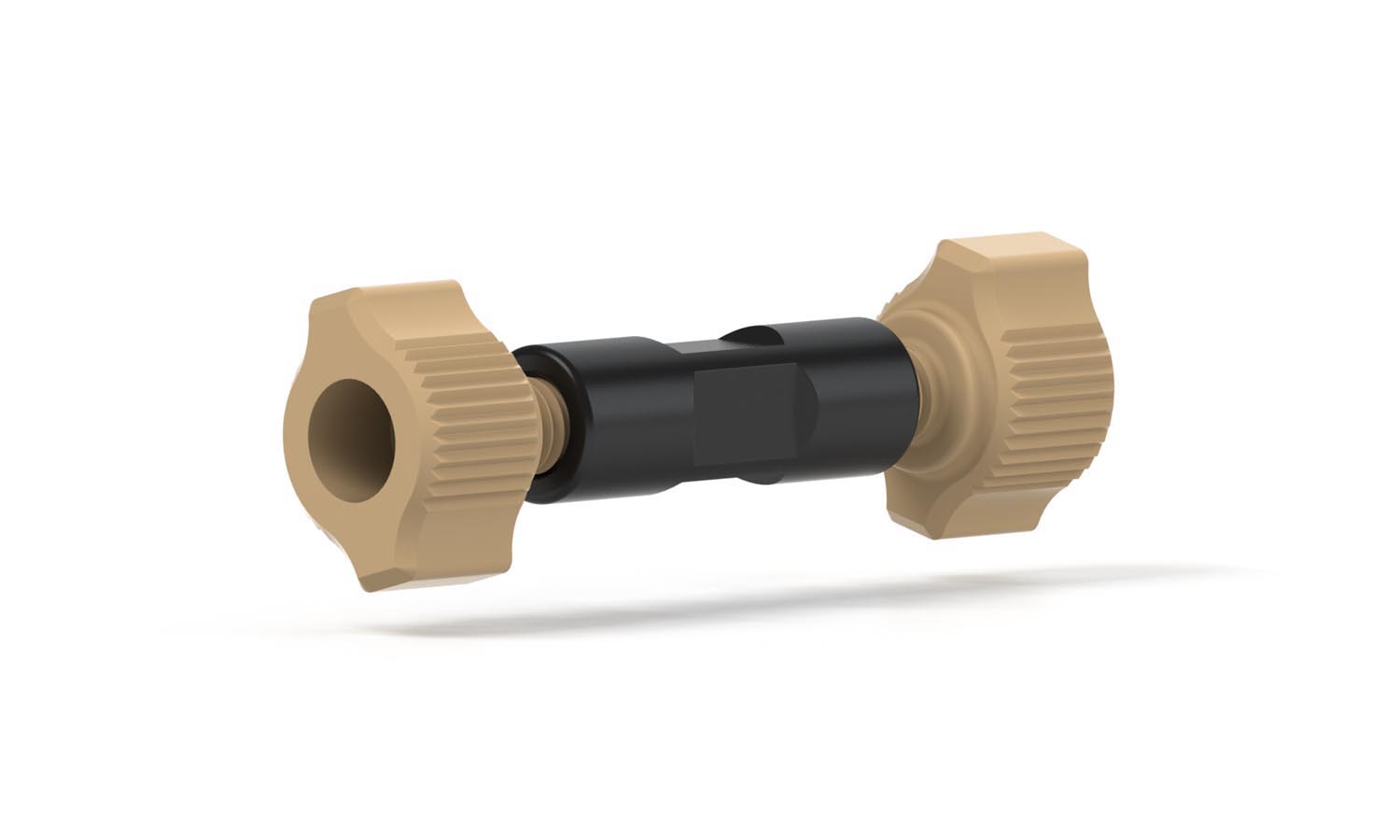

Union Assembly PEEK .010 10-32
Description
Our PEEK ZDV Union Assembly ensures a reliable connection for tubing. It effectively addresses this need in the high pressure region of a system where a dependable connection is imperative. It provides zero dead volume ZDV which allows tubing to butt against each other allow the fluidic path to be undisturbed. Our Union assembly includes (2) F-300 Fingertight Fittings. It also comes without Fittings. Brochure
Additional information
| For Tubing OD (in) | 1/16 |
|---|---|
| Material | PEEK |
| Pressure Rating Max (bar) | 345 |
| Pressure Rating Max (psi) | 5000 |
| Swept Volume (µL) | N/A |
| Thread Port Configuration Coned | 10-32 |
| Thru hole (in) | 0.010 |
| Thru hole (mm) | 0.25 |
