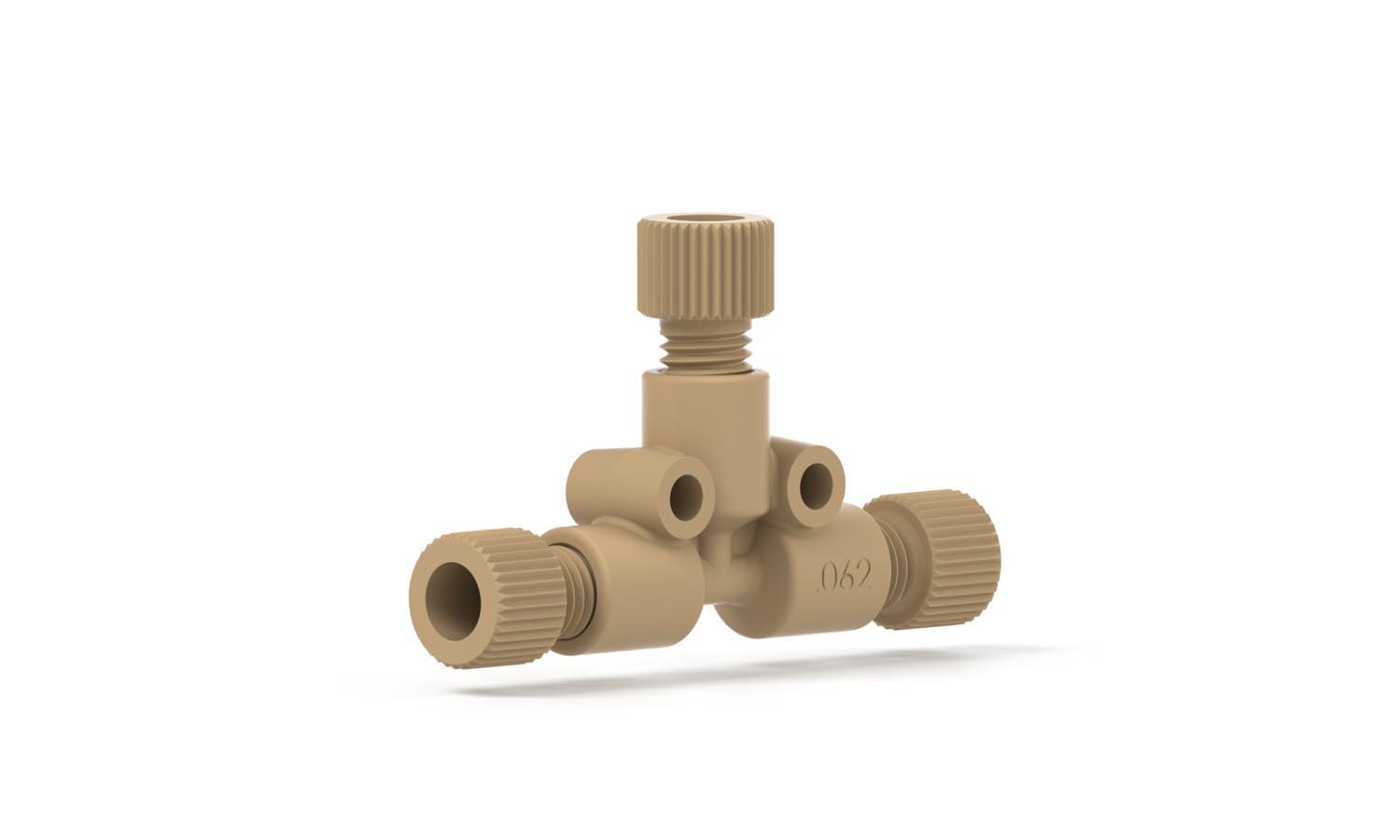

Tee Assembly PEEK for 1/8″ OD, .062 thru hole
Description
Our PEEK Low Pressure Tee Assembly is strong and durable handling a pressure rating 500 psi . It has excellent chemical resistance to commonly used solvents. Our assembly comes equipped with conveniently placed mounting holes. This assembly comes complete with (3) P-335 Nuts. Brochure
Additional information
| For Tubing OD (in) | 1/8 |
|---|---|
| Material | PEEK |
| Pressure Rating Max (bar) | 34 |
| Pressure Rating Max (psi) | 500 |
| Swept Volume (µL) | 17.5 |
| Thread Port Configuration Flat-Bottom | 1/4-28 |
| Thru hole (in) | 0.050 |
| Thru hole (mm) | 1.25 |
