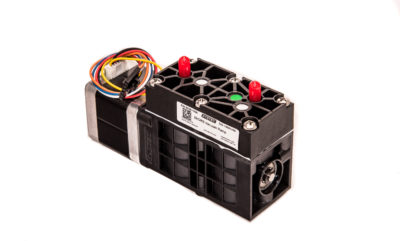

Systec ZHCR Degassing Pump

Systec ZHCR Vacuum Pump, Preparative bottom mount

Description

The Dual Stage Pump (DST) is a vacuum control system for use with IDEX degassing chambers and PCB control systems. The prep versions are designed to handle high vapor loads from high flow rate chambers or fluids with low vapor pressure that will cause increased solvent pervaporation through the membrane. The pump is also available in side mount versions.

Additional information

Air Flow (no vacuum)

650 SCCM @ 400 RPM, 100 SCCM @ 60 RPM

Expected Lifetime

More than 5 years (continuous run @ 60 RPM)

Motor winding resistance

4.4 ohm, Motor max rated current – 1A

Pump Head Continuous Purge Air Flow Rate

~30 SCCM

Pump-down Time

Less than 1 minute (with 4 MINI degassing channels, 50 cc total internal volume)

Step Angle

1.8°

Stepper motor driver

unipolar or bipolar

Typical Vacuum Performance

80 mmHg @ (80±20) RPM (3 SCCM air flow, closed loop)

Unipolar driver specs

16 microsteps/step, 680 mA peak current – 15 to 24 VDC, power consumption – less than 5 W with temperature rise <25°C, 16 microsteps/step, 680 mA peak current – 15 to 24 VDC, power consumption – less than 5 W with temperature rise less than25°C

Wetted Materials

303 Stainless Steel, Polypropylene, PTFE, EPDM Rubber
