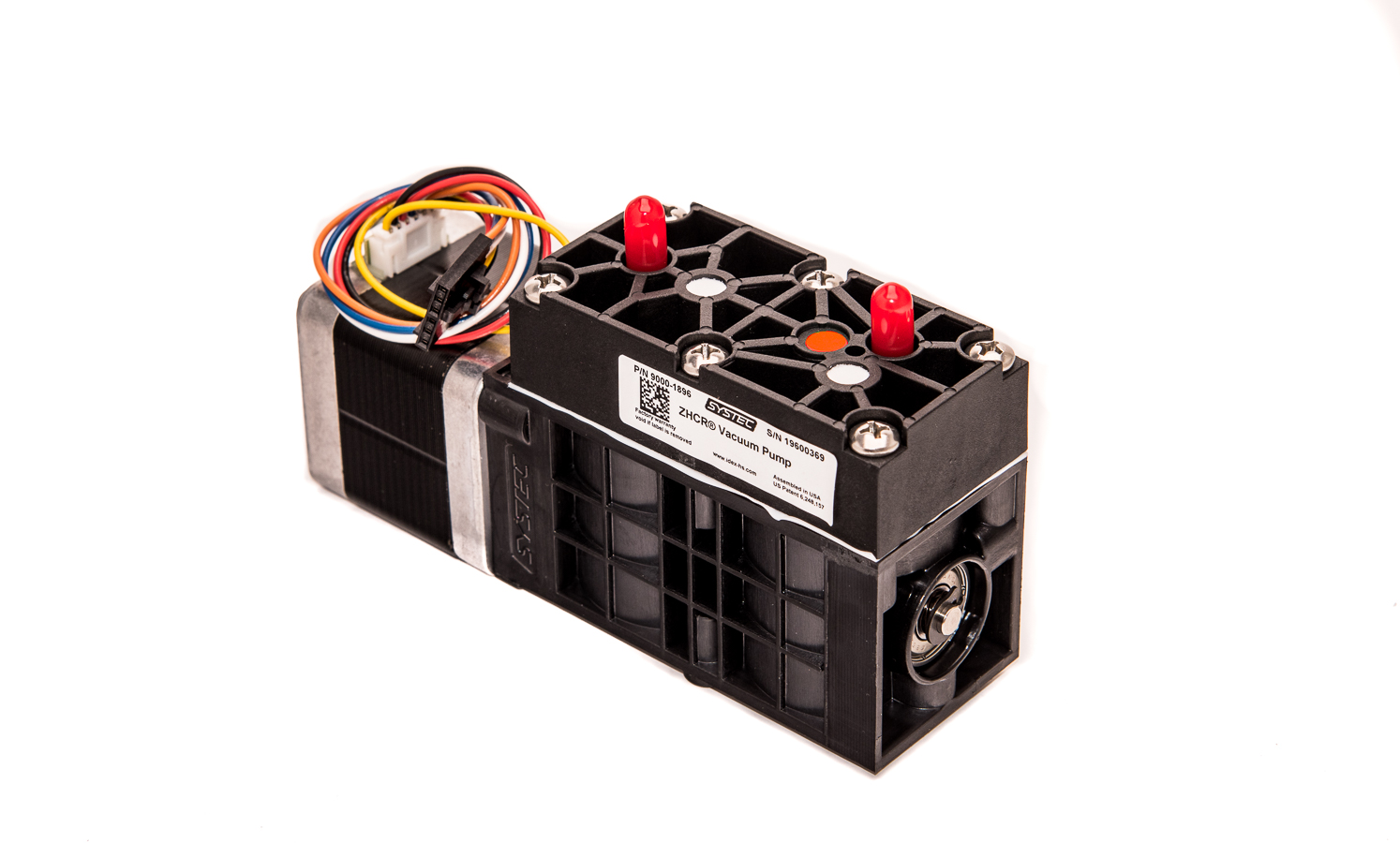

Systec ZHCR Vacuum Pump, Analytical, side mount. Replaced by 9000-2061
Description
The Dual Stage Pump (DST) is a vacuum control system for use with IDEX degassing chambers and PCB control systems. The analytical version is designed for standard degassing chambers and fluids. The pump is also available in side mount versions. REPLACED BY 9000-2061.
Additional information
| Air Flow (no vacuum) | 650 SCCM @ 400 RPM, 100 SCCM @ 60 RPM |
|---|---|
| Expected Lifetime | More than 5 years (continuous run @ 60 RPM) |
| Motor winding resistance | 4.4 ohm, Motor max rated current – 1A |
| Pump Head Continuous Purge Air Flow Rate | ~12 SCCM |
| Pump-down Time | Less than 1 minute (with 4 MINI degassing channels, 50 cc total internal volume) |
| Step Angle | 1.8° |
| Stepper motor driver | unipolar or bipolar |
| Typical Vacuum Performance | 50 mmHg @ (60±20) RPM (3 SCCM air flow, closed loop) |
| Unipolar driver specs | 16 microsteps/step, 680 mA peak current – 15 to 24 VDC, power consumption â less than 5 W with temperature rise <25°C, 16 microsteps/step, 680 mA peak current – 15 to 24 VDC, power consumption â less than 5 W with temperature rise less than25°C |
| Wetted Materials | 303 Stainless Steel, Polypropylene, PTFE, EPDM Rubber |
