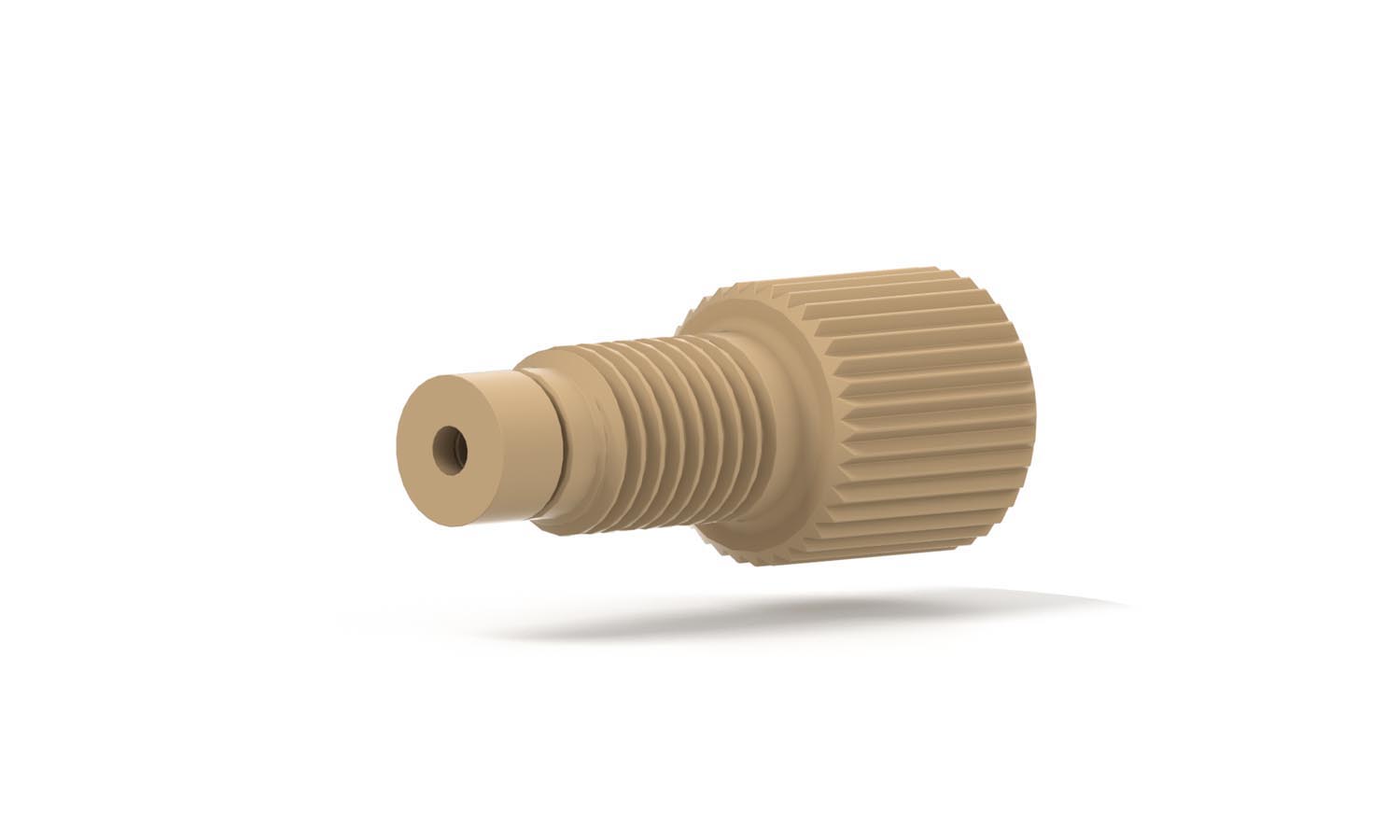

Super Flangeless(tm) One-Piece Fitting, 1/4-28 Flat-Bottom, for 1/16″ OD
Description
Our all-PEEK One Piece Super Flangeless Fitting is excellent for those connections that need to be broken frequently and tubing assemblies because they swage onto the tubing. Manufactured from biocompatible PEEK, it offers superior chemical resistance. It has an 1/4-28 Flat-Bottom port configuration and is for 1/16″OD Tubing. . Brochure
Additional information
| For Tubing OD (in) | 1/16 |
|---|---|
| Head Style | Standard Knurl |
| Material | PEEK |
| Pressure Rating Max (bar) | 69 |
| Pressure Rating Max (psi) | 1000 |
| Thread Port Configuration Flat-Bottom | 1/4-28 |
