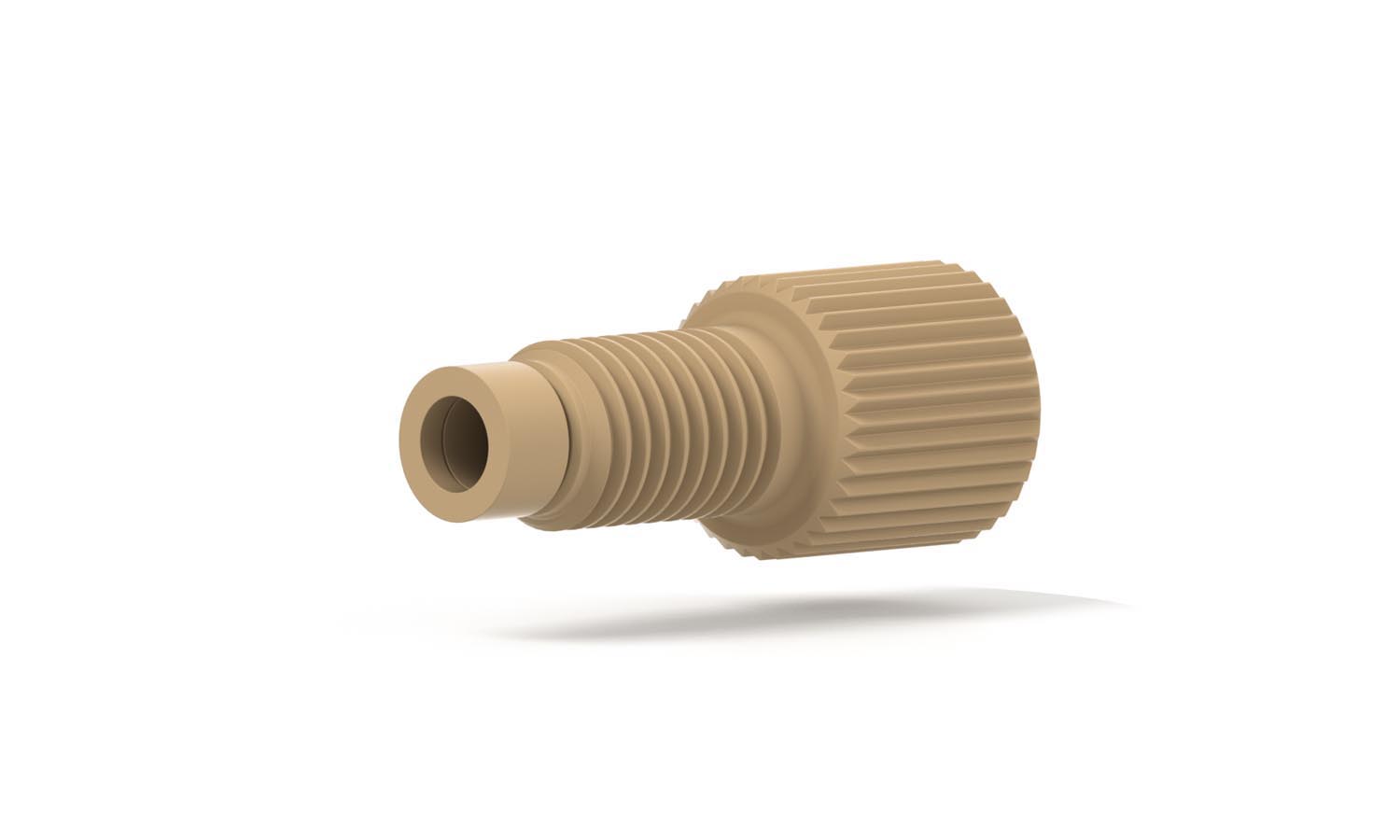

Super Flangeless(tm) One Piece Assembly, PEEK, 1/4-28 Flat Bottom, for 1/8″ OD
Description
Our All-PEEK One Piece Super Flangeless is optimally designed for those connections that need to be broken frequently and tubing assemblies because they swage onto the tubing. Manufactured from biocompatible PEEK, it offers excellent chemical resistance. It has an 1/-28 Flat-Bottom port configuration and is for 1/8″OD Tubing. Brochure
Additional information
| For Tubing OD (in) | 1/8 |
|---|---|
| Material | PEEK |
| Pressure Rating Max (bar) | 69 |
| Pressure Rating Max (psi) | 1000 |
| Thread Port Configuration Flat-Bottom | 1/4-28 |
