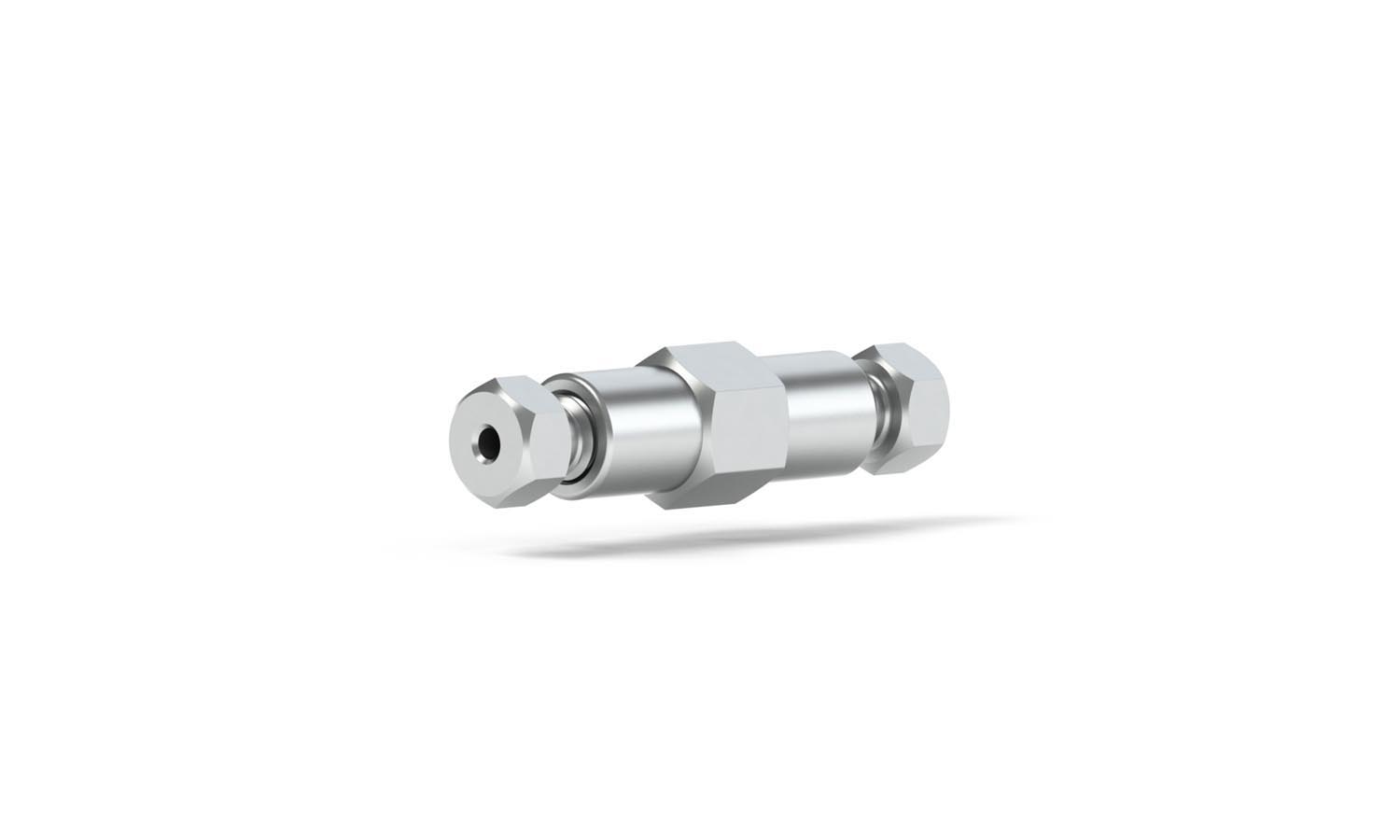

Stainless Steel Union Assembly ZDV .010in thru hole
Description
Our VHP Stainless Steel Union Assembly is precision machined from 316 stainless steel. Our mechanically strong and reliable union offers zero dead volume (ZDV) allowing tubing to be joined without interrupting the fluidic path. It is designed for 1/16″OD tubing, thru-hole of .010 and has a 10-32 Coned thread port configuration. It comes with (2) U-400/U-401 stainless steel fittings. .
Additional information
| For Tubing OD (in) | 1/16 |
|---|---|
| Material | Stainless Steel |
| Pressure Rating Max (bar) | 1380 |
| Pressure Rating Max (psi) | 20000 |
| Swept Volume (nL) | 20 |
| Thread Port Configuration Coned | 10-32 |
| Thru hole (in) | 0.010 |
| Thru hole (mm) | 0.25 |
