Stainless Steel Union Assembly True ZDV.062 thru hole
Description

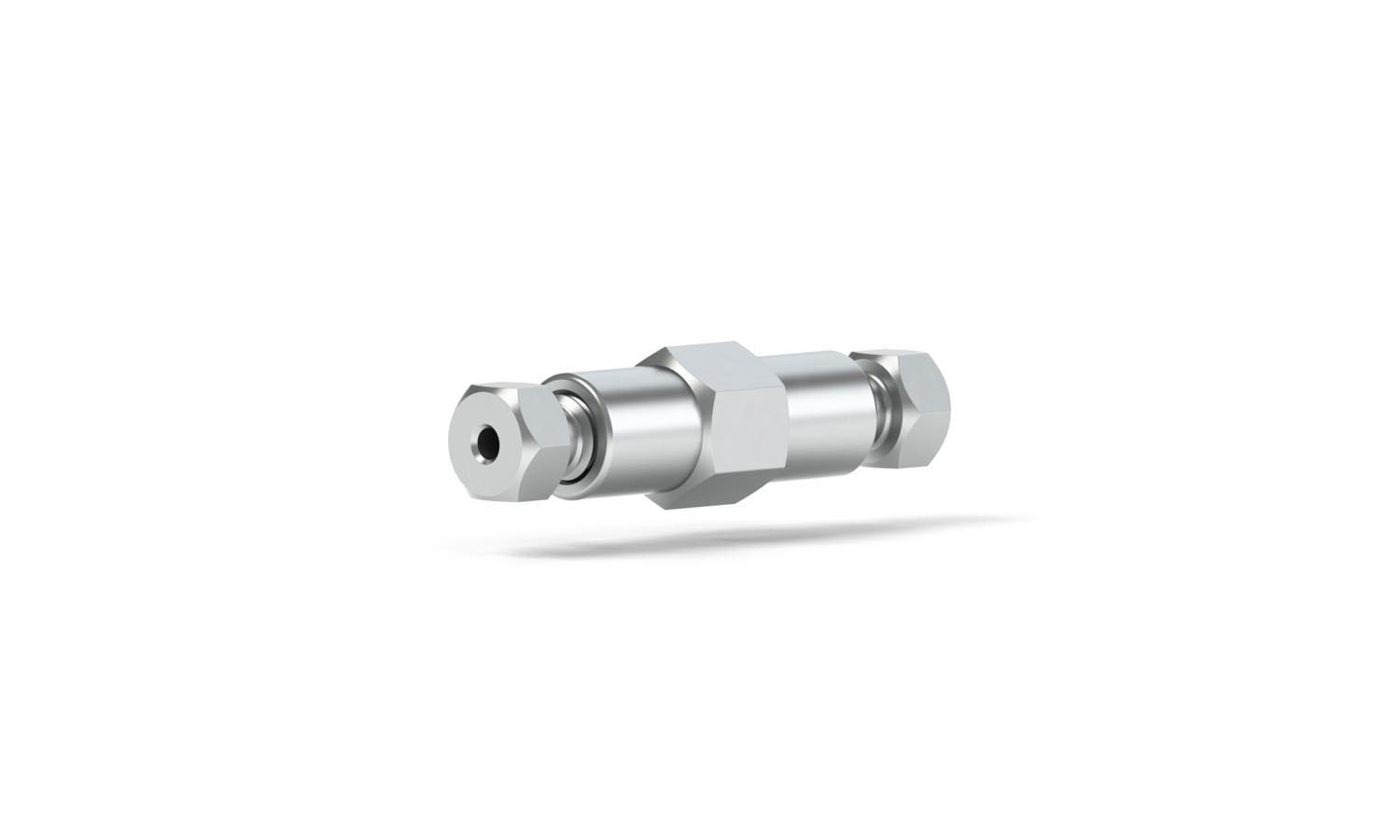

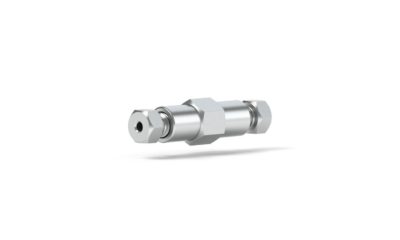

Our VHP Stainless Steel Union Assembly is precision machined from 316 stainless steel. Our mechanically strong and reliable union offers true zero dead volume (ZDV) allowing tubing to be joined without interrupting the fluidic path. It is designed for 1/16″OD tubing, thru-hole of .062 and has a 10-32 Coned thread port configuration. It comes with (2) U-400/U-401 stainless steel fittings and (1) P-554 Gauge Plug .
Additional information
| For Tubing OD (in) | 1/16 |
|---|---|
| Material | Stainless Steel |
| Pressure Rating Max (bar) | 1380 |
| Pressure Rating Max (psi) | 20000 |
| Thread Port Configuration Coned | 10-32 |
| Thru hole (in) | 0.062 |
| Thru hole (mm) | 1.55 |
