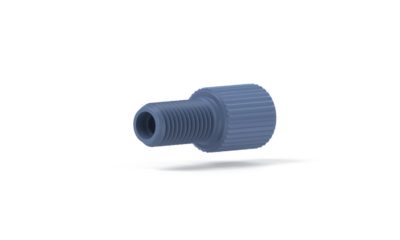

SealTight Flangeless Nut Delrin(r) 1/4-28 Flat-Bottom, for 1/16″ OD
Description
Our SealTight Flangeless Nut design makes high pressure flat-bottom 1/16″ OD tubing connections possible. It’s unique design minimizes tubing twists and typically is tightened only 1/4 turn past the point of initial compression. It has a 1/4-28 Flat-Bottom port configuration and is for 1/16″ OD tubing. It is made from chemically resistant Delrin and is blue. Brochure
Additional information
| Color | Blue |
|---|---|
| For Tubing OD (in) | 1/16 |
| Head Style | Standard Knurl |
| Material | PEEK |
| Pressure Rating Max (bar) | 345 |
| Pressure Rating Max (psi) | 5000 |
| Thread Port Configuration Flat-Bottom | 1/4-28 |
