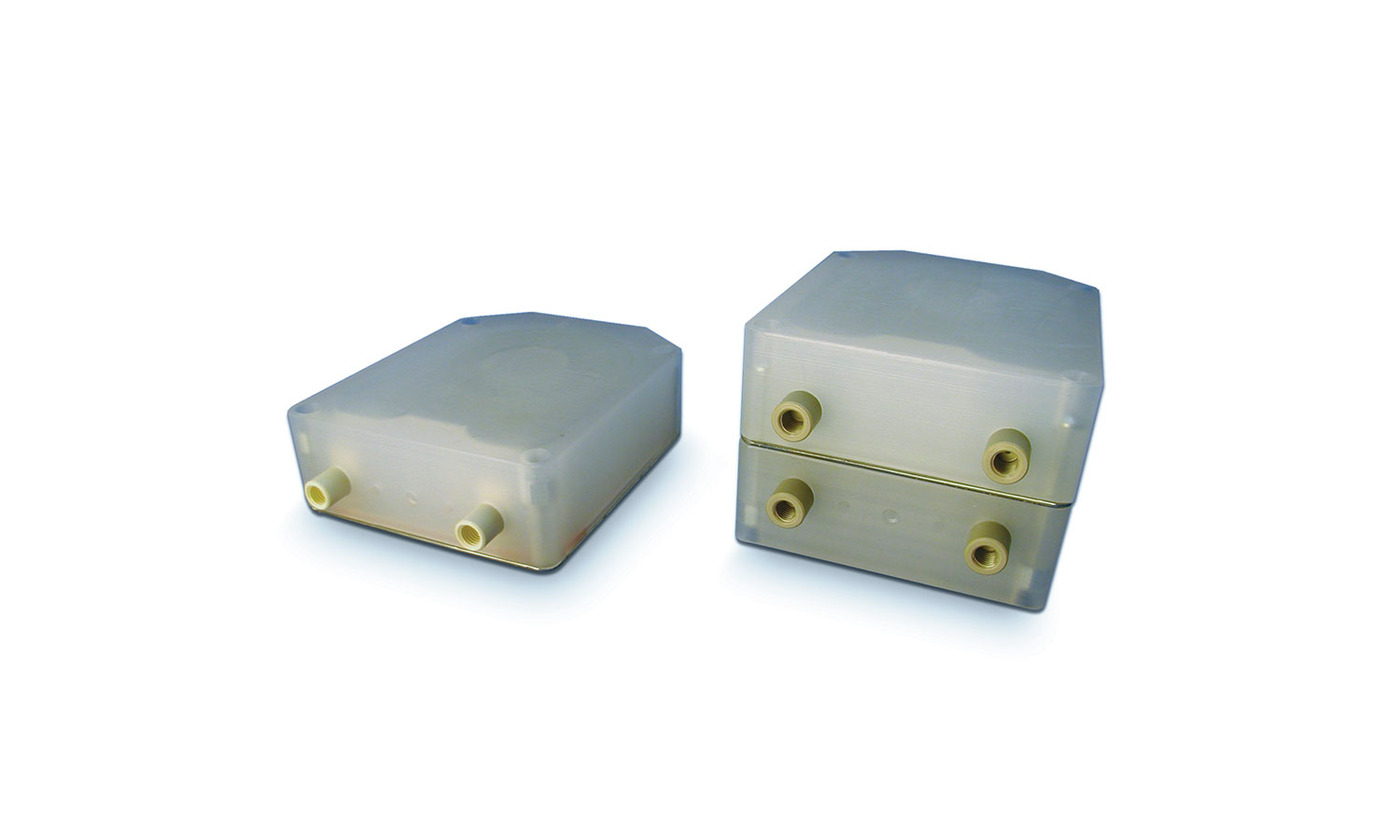

Preparative Degassing Chamber (2 Ch 20mL/min)
Description
Our Prep/Semi-Prep Scale Degassing Chamber is built for the rigors of modern preparative and semiprep scale HPLC. Its unique design assures reliable continuous operation and the highest level of continuous performance available. The chambers are available in single or dual channel configurations, allowing two solvent lines to be degassed simultaneously by one unit. IDEX SKU: 9000-1114
Additional information
| Chemical Compatibility | Organic Solvent Compatible See Solvent Compatibility Chart |
|---|---|
| Height (in) | 2.42 |
| Internal Volume mL | 8.4 |
| Length (in) | 4.84 |
| Liquid Connections | 1_4-28 UNF |
| Max Flow Rate (mL/min) | 30 |
| Membrane Type | Systec AF |
| # of Channels | 2 |
| Pressure Rating Max (psi) | 70 |
| Recommended Flow Rate (ml/min) | 20 |
| Tubing ID (in) | 0.075 |
| Vacuum Connection | Barb connector for 1/8â ID elastomeric Tubing |
| Wetted Materials | Systec AF, PEEK and Glass-filled PTFE |
| Width (in) | 3.38 |
