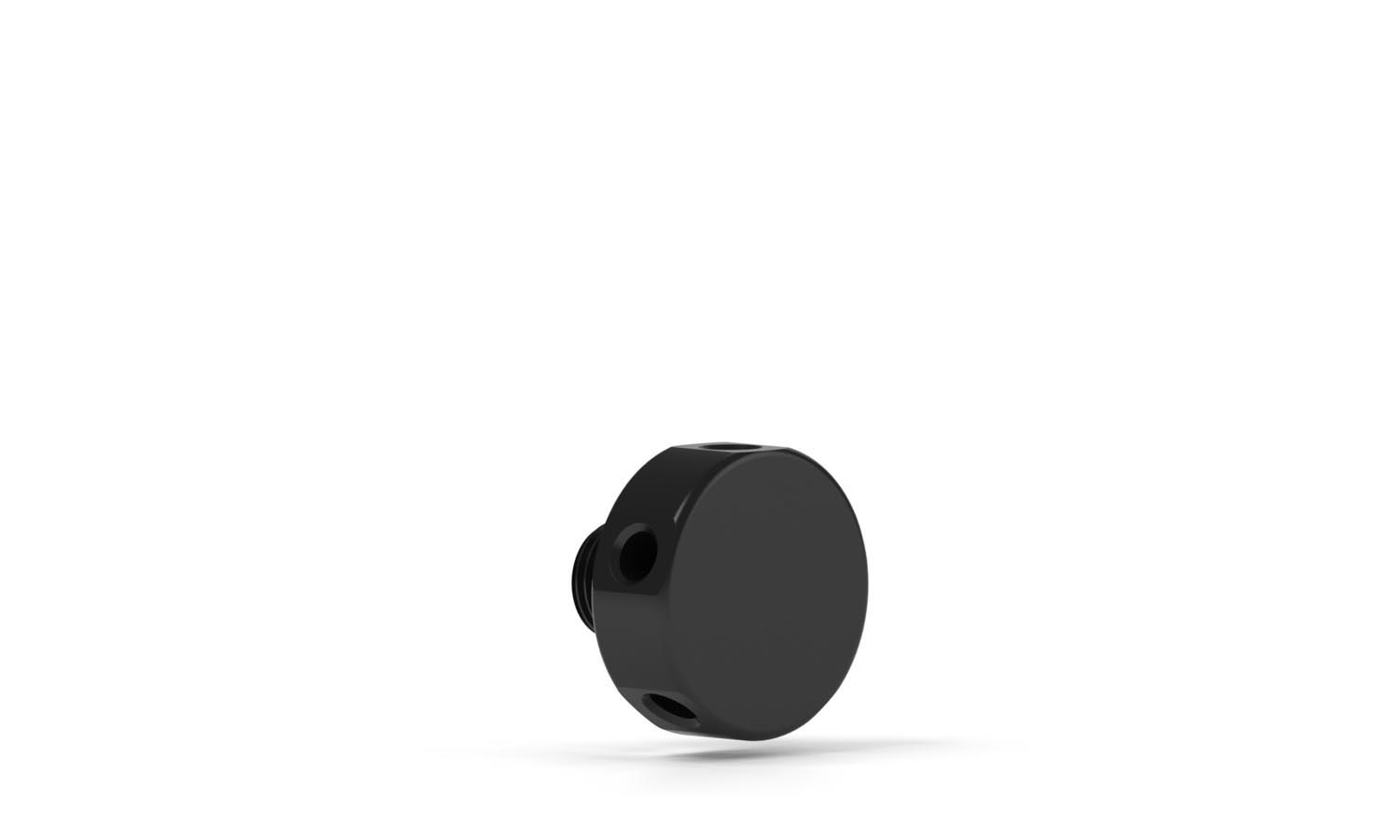

PEEK Manifold Assembly 5 Port for 1/8″ OD
Description
Our PEEK Manifold Assembly can be applied for a multi-Ports mixing chamber, combining several fluid streams into one or one stream split to several outlets. It can also be used as a gas sparging splitting unions or sample injection onto multi-well plates or a multiple direction flow path union. Our manifold is manufactured from biocompatible PEEK giving it excellent chemical resistance. It has 5 Ports and is for 1/8″ OD tubing. This assembly comes with Super Flangeless Fittings (5) P-331 and (5) P-359. Brochure
Additional information
For Tubing OD (in) | 1/8 |
---|---|
Material | PEEK |
Pressure Rating Max (bar) | 34 |
Pressure Rating Max (psi) | 500 |
Swept Volume (µL) | 53.8 |
Thread Port Configuration Flat-Bottom | 1/4-28 |
Thru hole (in) | 0.062 |
Thru hole (mm) | 1.60 |
