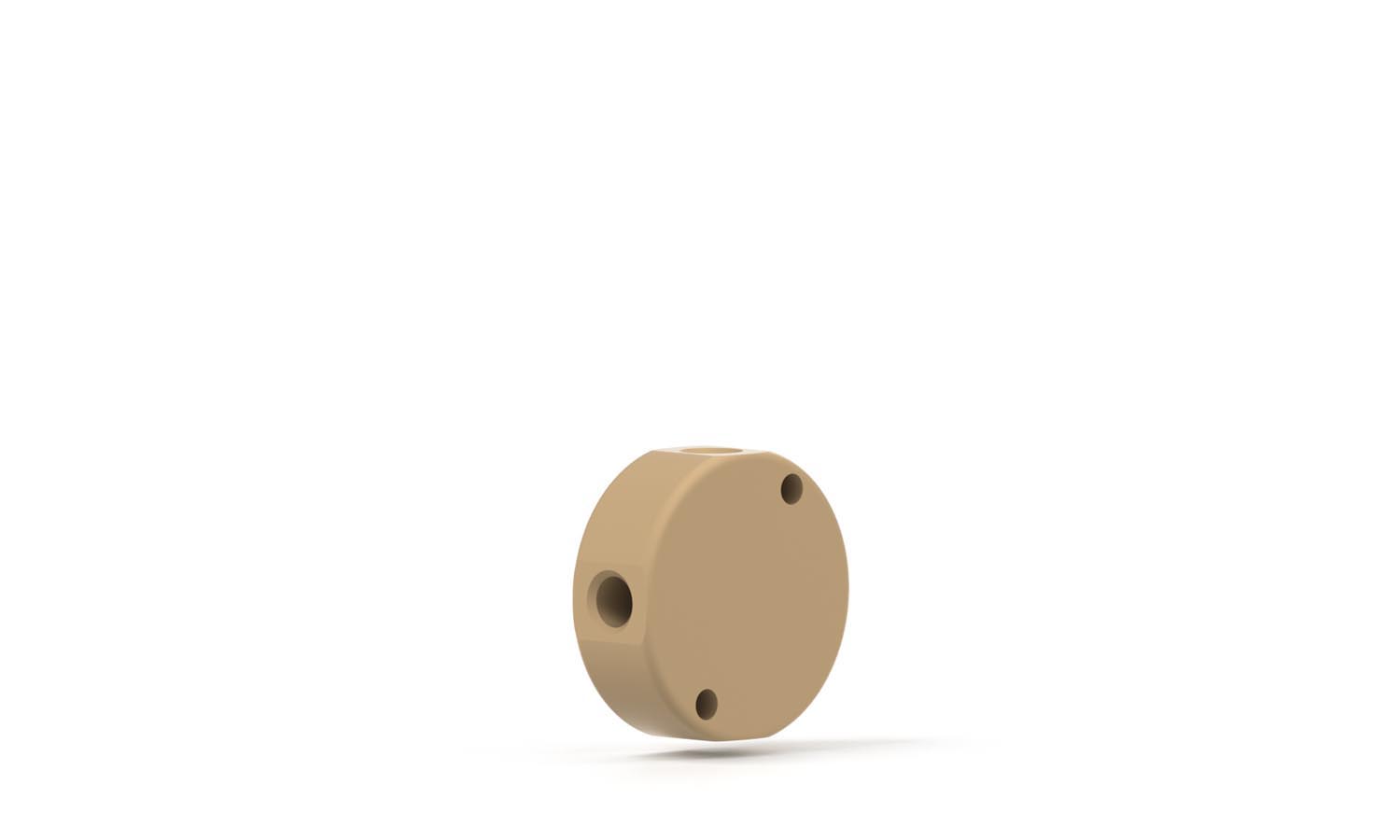

PEEK Manifold Assembly 5 Port, for 1/16″ OD
Description
Our PEEK Manifold Assembly can be easily applied for a multi-Ports mixing chamber, combining several fluid streams into one or one stream split to several outlets. It can also be used as a gas sparging splitting unions or sample injection onto multi-well plates or a multiple direction flow path union. Our manifold is manufactured from biocompatible PEEK giving it excellent chemical resistance. It has 5 Ports and is for 1/16″OD tubing. This assembly comes with Super Flangeless Fittings (5) P-255 and (5) P-250. Brochure
Additional information
| For Tubing OD (in) | 1/16 |
|---|---|
| Material | PEEK |
| Pressure Rating Max (bar) | 69 |
| Pressure Rating Max (psi) | 1000 |
| Swept Volume (µL) | 22.3 |
| Thread Port Configuration Flat-Bottom | 1/4-28 |
| Thru hole (in) | 0.040 |
| Thru hole (mm) | 1.00 |
