DEGASi COMPACT OEM 0001-6684

OEM Compact Degasser, 3-channel 285 µl Systec AF

Description

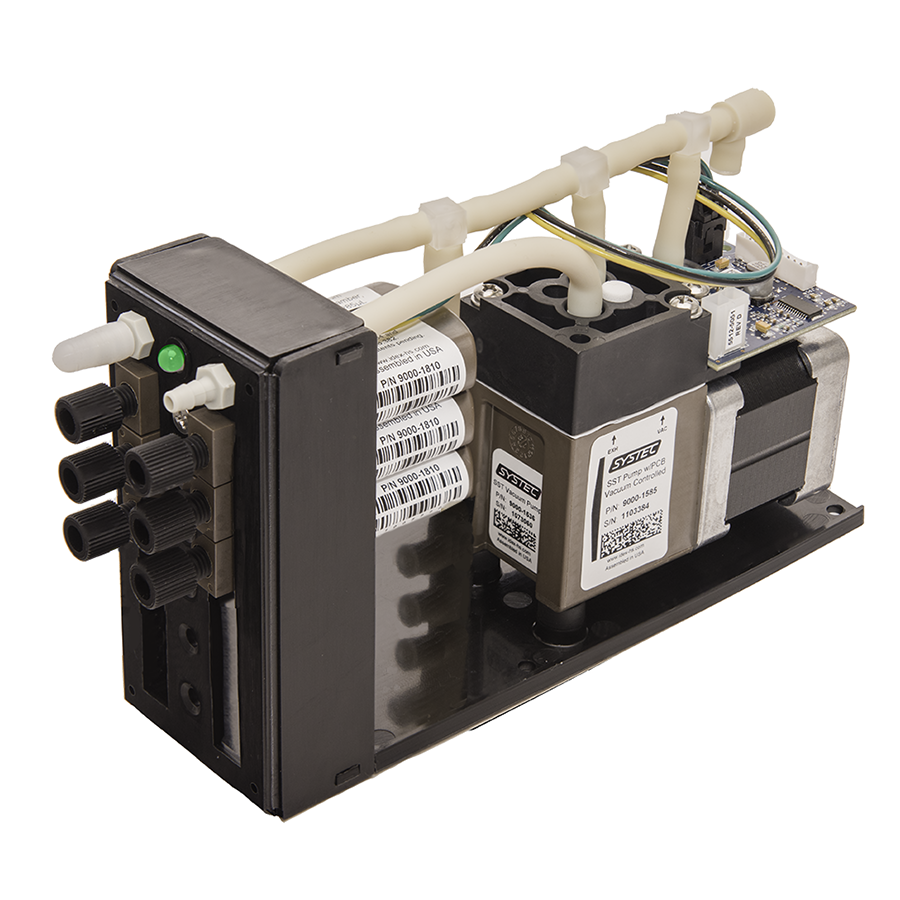

Our OEM Mini Lite degassing system offers the smallest form factor of any degassing system available. The single stage pump offers long life while reducing overall size. A more efficient Systec AF membrane has decreased internal volume while maintaining degassing efficiency and on open polypropylene bracket makes it easy to integrate into nearly any system. It is a 3 channel degasser.
IDEX SKU: 0001-6684Our OEM Mini Lite degassing system offers the smallest form factor of any degassing system available. The single stage pump offers long life while reducing overall size. A more efficient Systec AF membrane has decreased internal volume while maintaining degassing efficiency and on open polypropylene bracket makes it easy to integrate into nearly any system. It is a 3 channel degasser.
IDEX SKU: 0001-6684Our OEM Mini Lite degassing system offers the smallest form factor of any degassing system available. The single stage pump offers long life while reducing overall size. A more efficient Systec AF membrane has decreased internal volume while maintaining degassing efficiency and on open polypropylene bracket makes it easy to integrate into nearly any system. It is a 3 channel degasser.
IDEX SKU: 0001-6684Our OEM Mini Lite degassing system offers the smallest form factor of any degassing system available. The single stage pump offers long life while reducing overall size. A more efficient Systec AF membrane has decreased internal volume while maintaining degassing efficiency and on open polypropylene bracket makes it easy to integrate into nearly any system. It is a 3 channel degasser.
IDEX SKU: 0001-6684

Additional information

Bubble Removal

No

Chemical Compatibility

See Solvent Compatibility Chart

Degassing Performance

45% O2 removed at 2ml/min

Degassing Transfer Length

No

Fluid Compatibility

No, Expected Lifetime – >6 years (100 RPM 12 hours/day 365 days/year)

Height (in)

4

Internal Volume mL

No

Length (in)

6.84

Liquid Connections

1_4-28 UNF

Max Flow Rate (mL/min)

10

Maximum Temperature ºC

No

Membrane Type

Systec AF

Mounting

No

Power Requirements

24 VDC @ 0.75 Amp max (< 5 Watts consumption average)

Pressure Rating Max (psi)

No

Tubing ID (in)

0.035

Tubing ID (mm)

0.889

Vacuum Connection

Barb connector for 1/8” ID elastomeric Tubing

Vacuum Flow Path Materials

303 Stainless Steel, Polypropylene, PTFE, EPDM Rubber

Vacuum Performance

No

Wetted Materials

AF, FEP, PEEK and Glass-filled PPS (Polyphenylene Sulfide)

Width (in)

2.05
