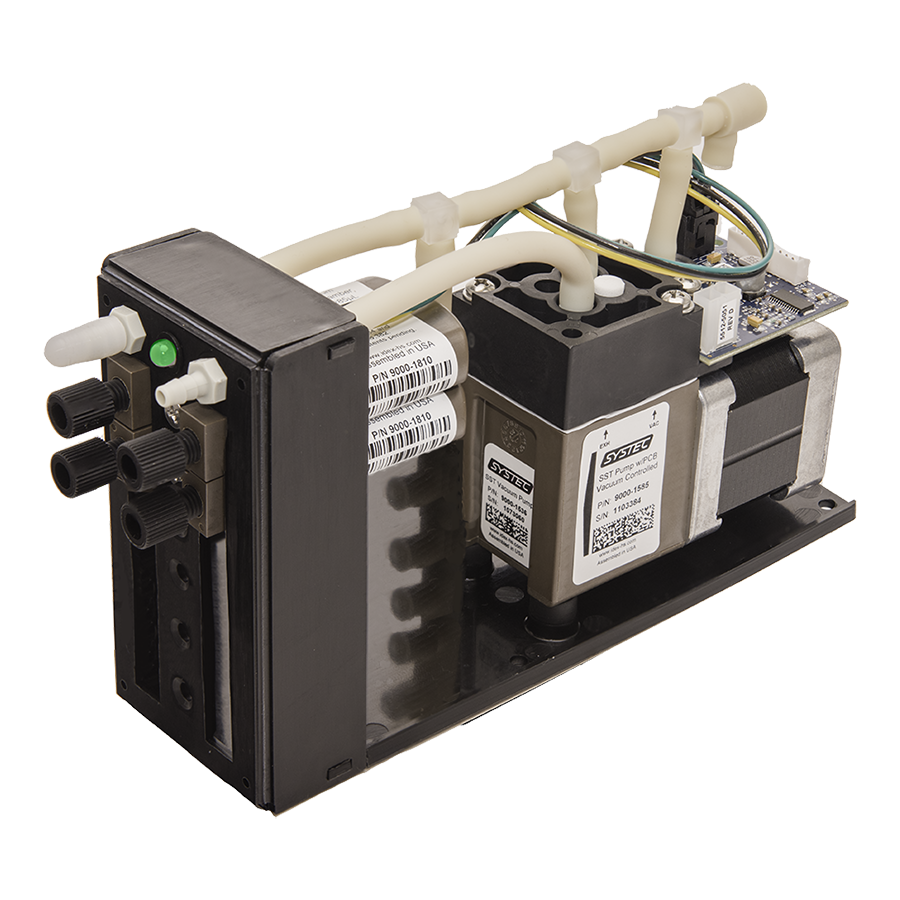

OEM Compact Degasser, 2-channel 285 µl Systec AF
Description
Our OEM Mini Lite degassing system offers the smallest form factor of any degassing system available. The single stage pump offers long life while reducing overall size. A more efficient Systec AF membrane has decreased internal volume while maintaining degassing efficiency and on open polypropylene bracket makes it easy to integrate into nearly any system. It is a 2 channed Degasser.
IDEX SKU: 0001-6683
Additional information
Bubble Removal | No |
---|---|
Chemical Compatibility | See Solvent Compatibility Chart |
Degassing Performance | 45% O2 removed at 2ml/min |
Degassing Transfer Length | No |
Fluid Compatibility | No, Expected Lifetime – >6 years (100 RPM 12 hours/day 365 days/year) |
Height (in) | 4 |
Internal Volume mL | No |
Length (in) | 6.84 |
Liquid Connections | 1_4-28 UNF |
Max Flow Rate (mL/min) | 10 |
Maximum Temperature ºC | No |
Membrane Type | Systec AF |
Mounting | No |
Power Requirements | 24 VDC @ 0.75 Amp max (< 5 Watts consumption average) |
Pressure Rating Max (psi) | No |
Recommended Flow Rate (ml/min) | 2.8 |
Tubing ID (in) | 0.035 |
Tubing ID (mm) | 0.889 |
Vacuum Connection | Barb connector for 1/8â ID elastomeric Tubing |
Vacuum Flow Path Materials | 303 Stainless Steel, Polypropylene, PTFE, EPDM Rubber |
Vacuum Performance | No |
Wetted Materials | AF, FEP, PEEK and Glass-filled PPS (Polyphenylene Sulfide) |
Width (in) | 2.05 |
