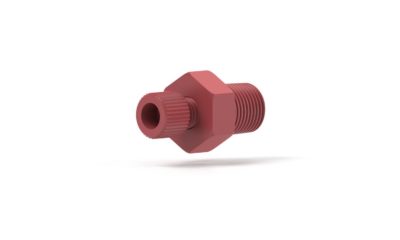

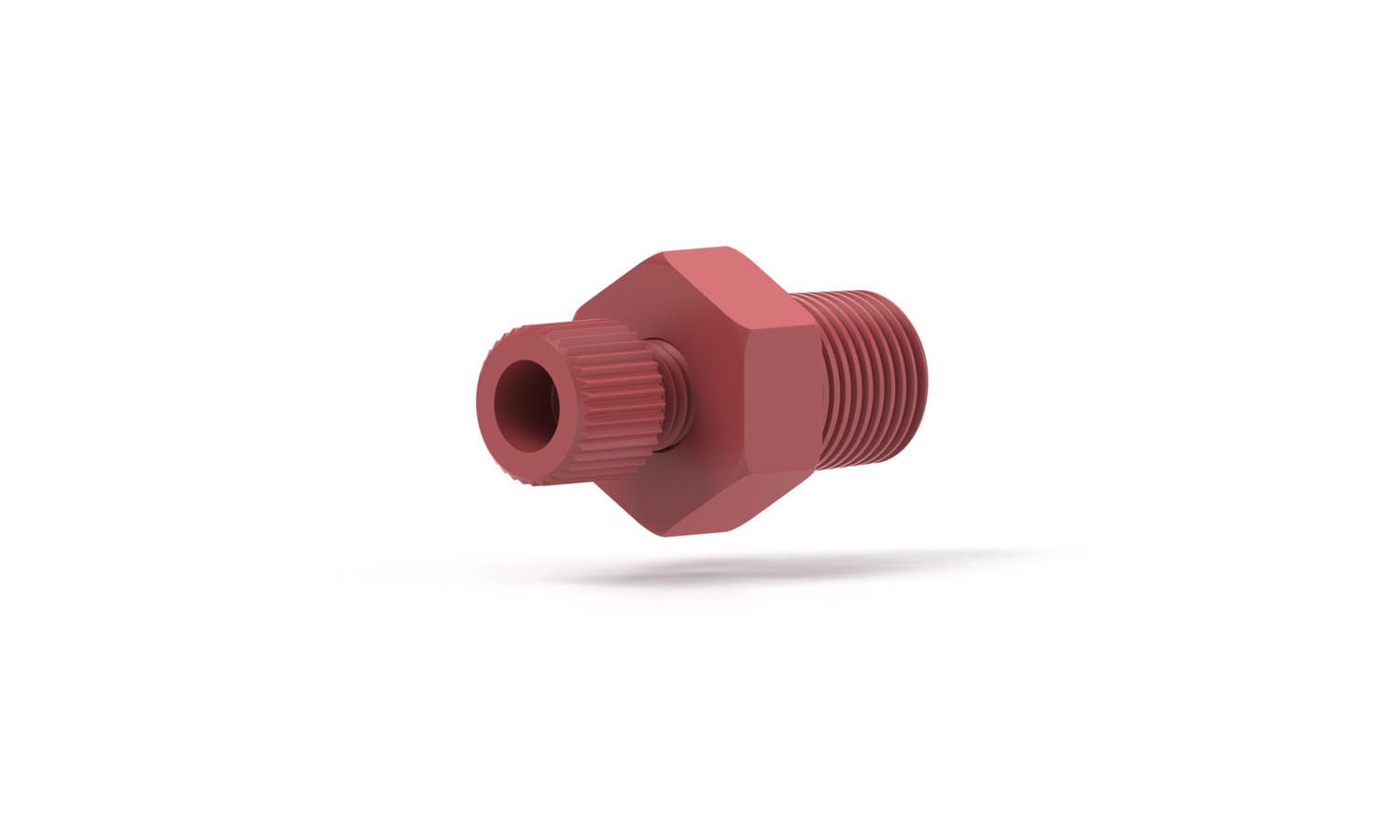

NPT Adapter Assembly PEEK 1/8 NPT Male x 1/4-28 Female
Description
Our NPT (National Pipe Thread) Adapter Assembly is specifically manufactured from PEEK making it durable and chemically resistant. Our NPT Adapter is exceptionally useful for attaching 1/8″OD fluoropolymer sparging lines to sparging gas tank regulator valves. It’s thread configuration is 1/8″ NPT Male to 1/4-28 Flat-Bottom Female ports. It is red and comes with (1)OD x P-308 Fitting.
Additional information
| Color | Red |
|---|---|
| For Tubing OD (in) | 1/8 |
| Material | PEEK |
| Pressure Rating Max (bar) | 34 |
| Pressure Rating Max (psi) | 500 |
| Swept Volume (nL) | 17.3 |
| Thread to Thread | 1/8 NPT Male to 1/4-28 Flat-Bottom Female |
| Thru hole (in) | 0.062 |
| Thru hole (mm) | 1.55 |
