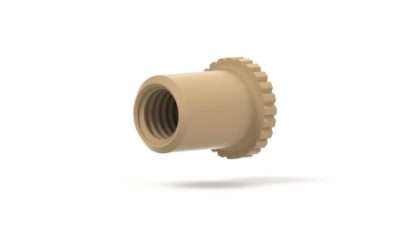

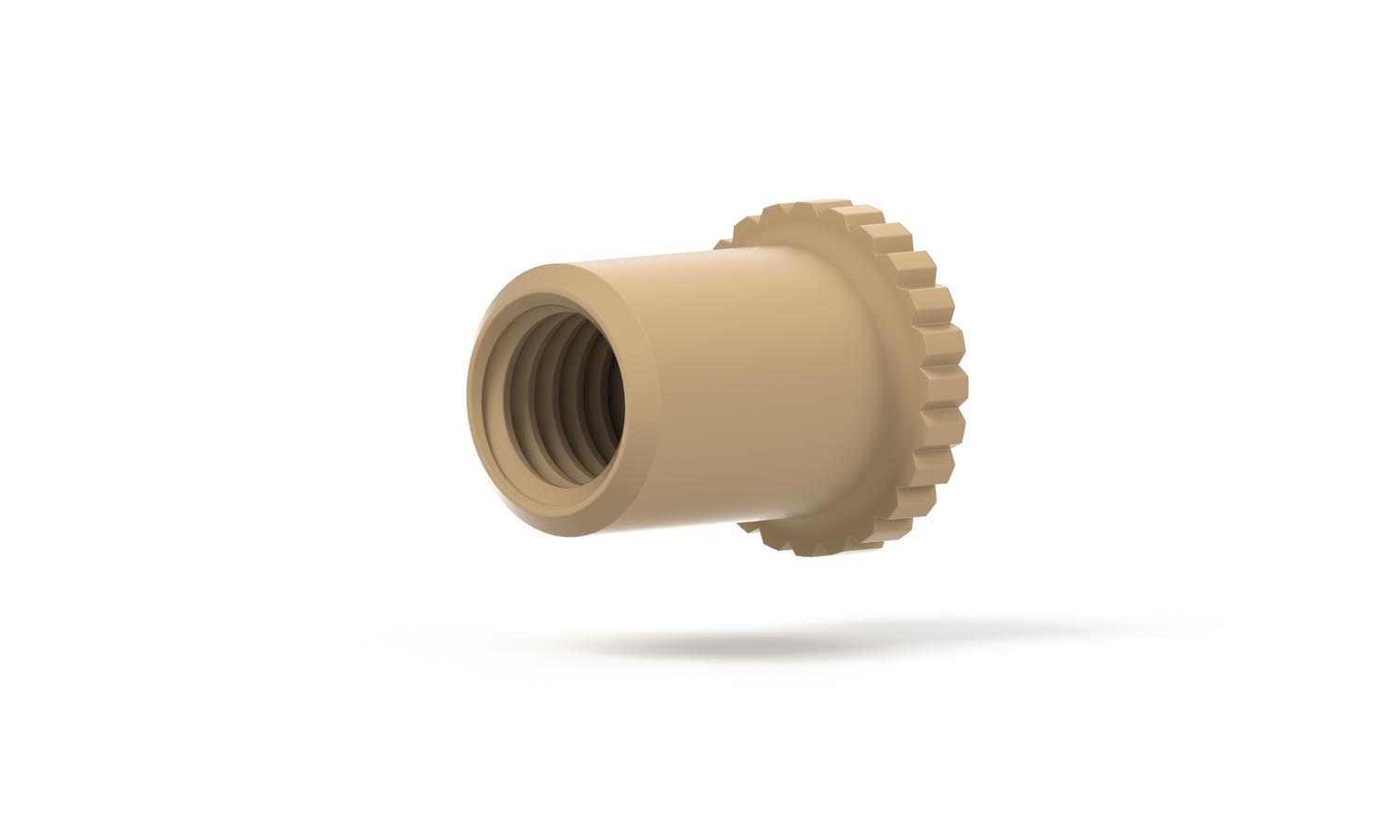

NanoPort Assembly Headless, 10-32 Coned, for 1/16″ OD,

Description

Our NanoPort Assembly provides consistent fluid connections for chip-based analyses. Our unique design also prevents adhesive contamination of the fluid path. NanoPorts will adhere to silicon, quartz, glass and some polymers. It is for 1/16″OD tubing and has a 10-32 Coned thread port configuration. It comes with ferrule F-142N.

Additional information

For Chip Hole (dia." ID depth)

Up to 0.063-€ (1.6 mm)

For Tubing OD (in)

1/16

Head Style

Headless Knurl

Material

PEEK

Pressure Rating Max (bar)

69

Pressure Rating Max (psi)

1000

Thread Port Configuration MiniStac

10-32 Coned
