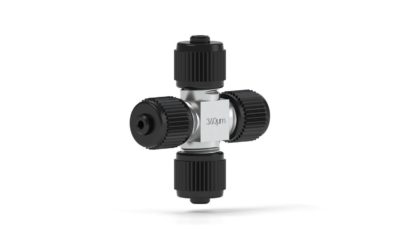

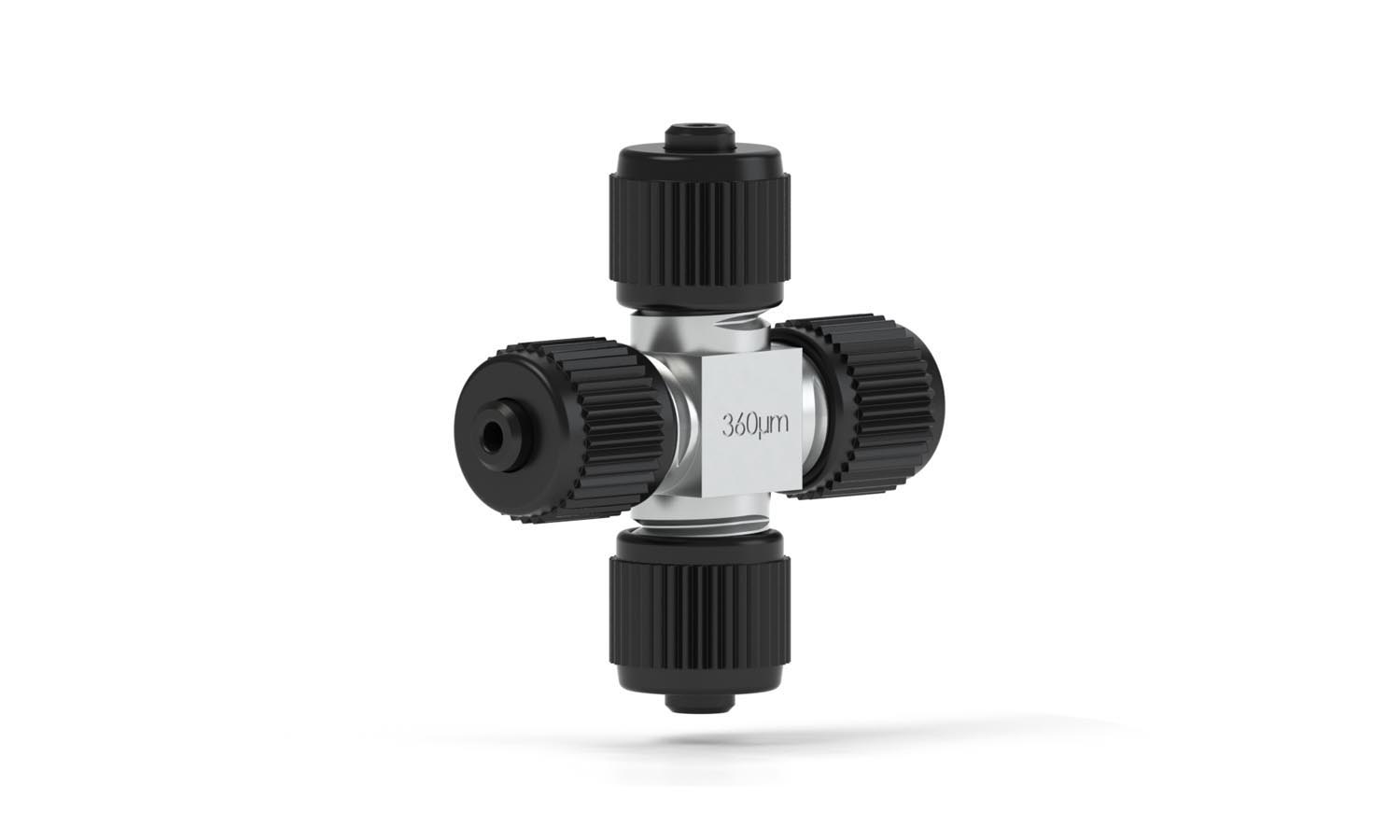

MicroCross Assembly for 360µm OD
Description
Our VHP MicroCross Assembly’s unique design creates a direct connection for tubing; no sleeves required. It is manufactured from durable stainless steel and features a small thru-hole and very low internal volume. Stainless steel delivers excellent chemical compatibility and conductivity making it an ideal choice when electrical applications are in use. It is for 360µm OD tubing and has a thread of 5/16-24 Coned. It comes with (4) PK-152 and (4)P-416BLK Fittings. Brochure
Additional information
| For Tubing OD (µm) | 360 |
|---|---|
| Material | PEEK/Stainless Steel |
| Pressure Rating Max (bar) | 1034 |
| Pressure Rating Max (psi) | 15000 |
| Swept Volume (nL) | 101 |
| Thread Port Configuration Coned | 5/16-24 |
| Thru hole (in) | 0.010 |
| Thru hole (mm) | 0.25 |
