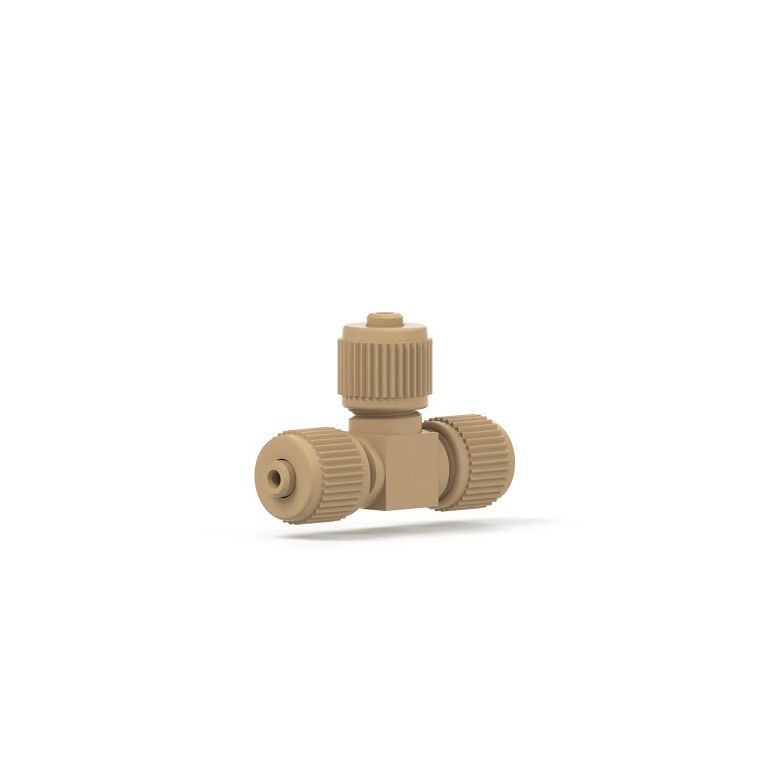

Micro Static Mixing Tee Assembly Frit
Description
Micro Static Mixing Tee has a unique design where it’s internal geometry allows for two fluid streams to combine into one. It has a .5µm PEEK polymer frit that assists in mixing. It is for 1/16″OD Tubing. It includes (3) F-132/P-416 . The M-540A comes w/o a Frit.
Additional information
| For Tubing OD (in) | 1/16 |
|---|---|
| Material | PEEK |
| Pressure Rating Max (bar) | 345 |
| Pressure Rating Max (psi) | 5000 |
| Swept Volume (µL) | 2.2 |
| Thread Port Configuration Coned | 5/16-24 |
| Thru hole (in) | 0.020 |
| Thru hole (mm) | 0.50 |
