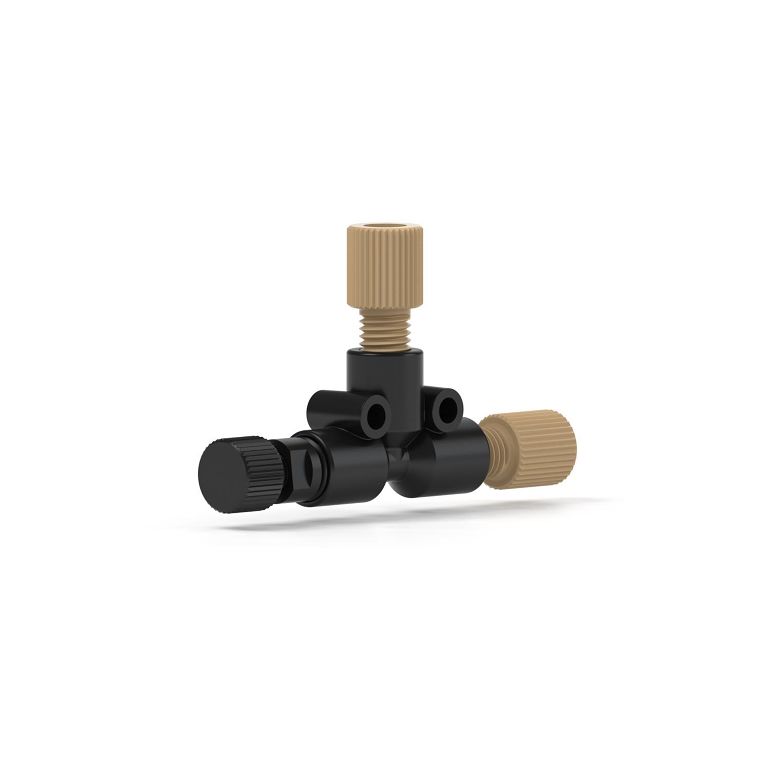

Micro Metering Valve Assembly for 1/16″ OD With Fittings
Description
Our PEEK Micro-Metering Valve assembly is designed for the control of fluid flow rates. These needle valves are ideally used with peristaltic pumps, pump fluid-transfer, mass spectometry and fraction collection. is for 1/16″OD tubing. It includes (2) P-230 Flangeless Fittings. It is also available without Fittings.
Additional information
| Color | Black |
|---|---|
| For Tubing OD (in) | 1/16 |
| Material | PEEK |
| Pressure Rating Max (bar) | 55 |
| Pressure Rating Max (psi) | 800 |
| Thru hole (in) | 0.020 |
| Thru hole (mm) | 0.50 |
| Volume (µL) | 7.7 |
