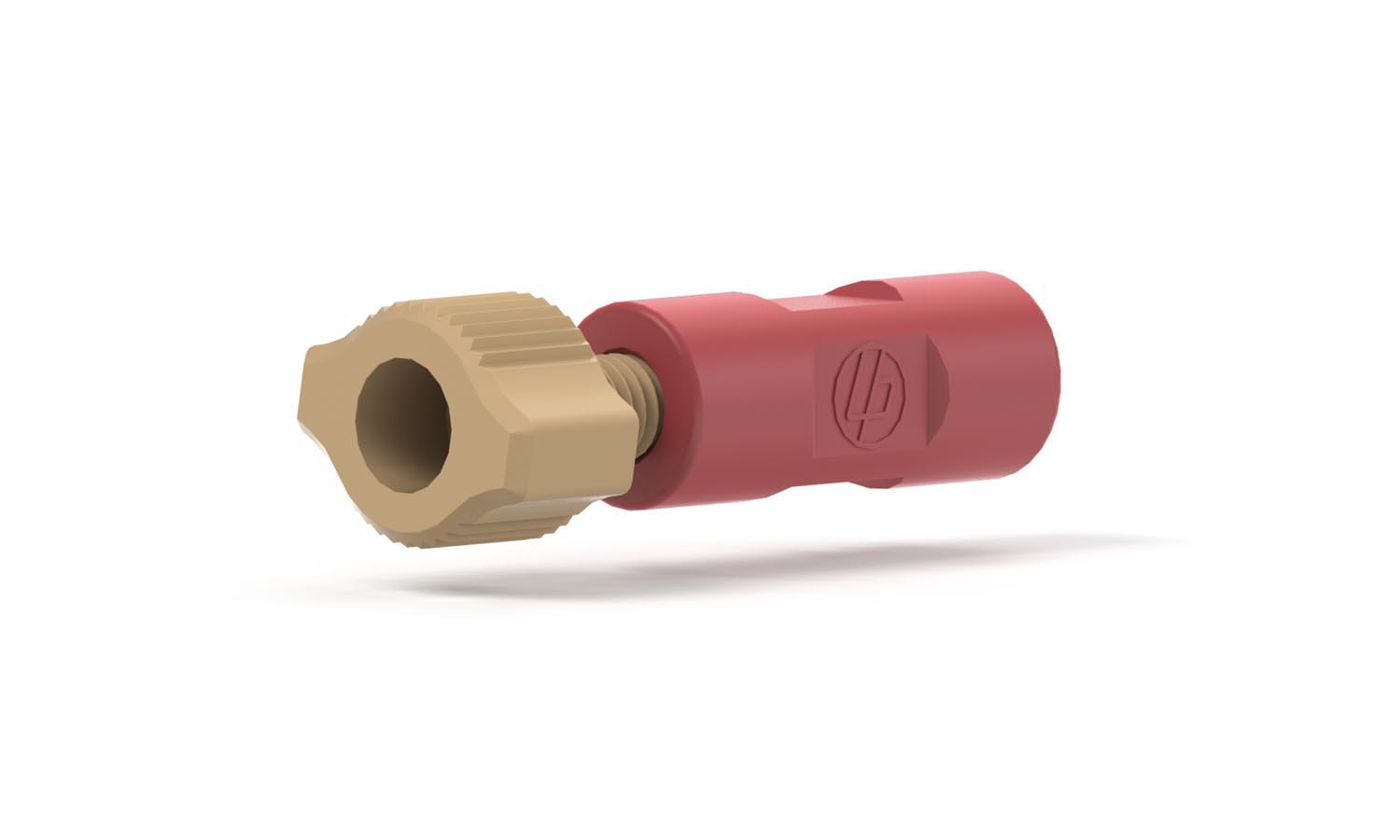

Metric Adapter Assembly 10-32 Coned x M6 Flat-Bottom, .020 thru hole
Description
Our PEEK, Metric Threaded Adapter Assembly is ideal for bringing together connectors with different threads. The P-626 has a Female 10-32 Coned to Female M6 Flat-Bottom design. It included (1) F-300 Fingertight Fitting. Brochure
Additional information
| Material | PEEK |
|---|---|
| Swept Volume (µL) | 0.3 |
| Thread Port Configuration Flat-Bottom | 10-32 to M6 |
| Thread to Thread | Female to Female |
| Thru hole (in) | 0.020 |
| Thru hole (mm) | 0.50 |
