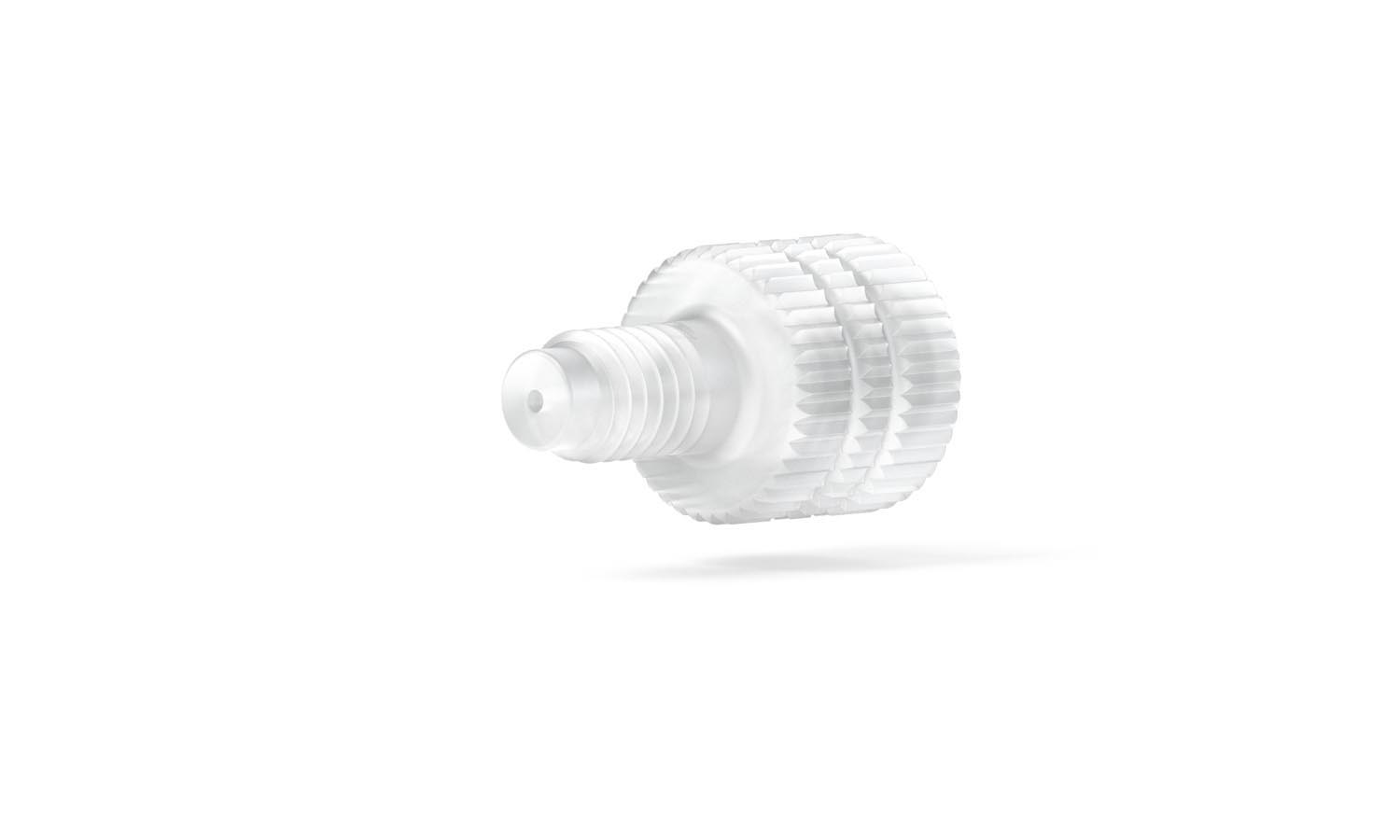

Metric Adapter – 5/16-24 Female x M6 Male
Description
Metric Threaded Adapters are used specifically to attach connectors with different threads. It is manufactured from chemically resistant PCTFE, which has excellent thread strength. Our Adapter has a Female 5/16 Flat Bottom to Male M6 Flat-Bottom port configuration. It includes no fittings. Brochure
Additional information
| Material | PCTFE |
|---|---|
| Pressure Rating Max (bar) | 69 |
| Pressure Rating Max (psi) | 1000 |
| Swept Volume (µL) | 9.9 |
| Thread Port Configuration Flat-Bottom | 5/16 to 1/4-28 |
| Thread to Thread | Female to Male |
| Thru hole (in) | 0.040 |
| Thru hole (mm) | 1.00 |
