MarvelX Stainless Steel 125µmx150mm Kit
Description

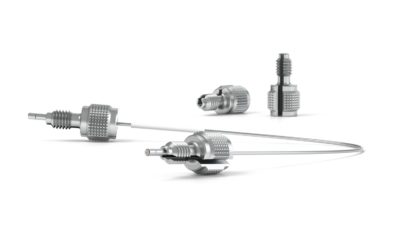

MarvelX UHPLC Connection Systems from IDEX Health & Science ensure zero dead volume and prevent peak tailing. MarvelX UHPLC finger-tight fittings do not depend on ferrules, which significantly reduces required torque and enables many more connects and disconnects. Furthermore, they are virtually impossible to over-tighten by hand, which limits wear and increases product life. Enhanced high tech tip sealing also ensures zero dead volume (ZDV) and better chromatography results. Our durable stainless steel connection system is rated at 19,000 psi (~1,310 bar) for routine use â with maximum over pressure up to 29,000 psi â and includes flexible tubing that can be replaced independent of fittings.
Additional information
Pressure Rating PSI | 19,000 |
---|---|
Pressure Rating Bar | 1,310 |
Tubing ID (in) | 0.005 |
Installation Method | Fingertight 1/8 to1/4 of a turn after the initial resistance |
Wetted Materials | PEEK and 316 Stainless Steel |
Max Temperature, ºC | 120 |
Tubing Type | 1/32"OD Flexible 316 Stainless Steel with 1/16" OD rigid tube ends |
Fitting Type | 10-32 threaded, removable 316 Stainless Steel |
Material | Stainless Steel |
Tubing Length (mm) | 150 |
Tubing ID (µm) | 125 |
