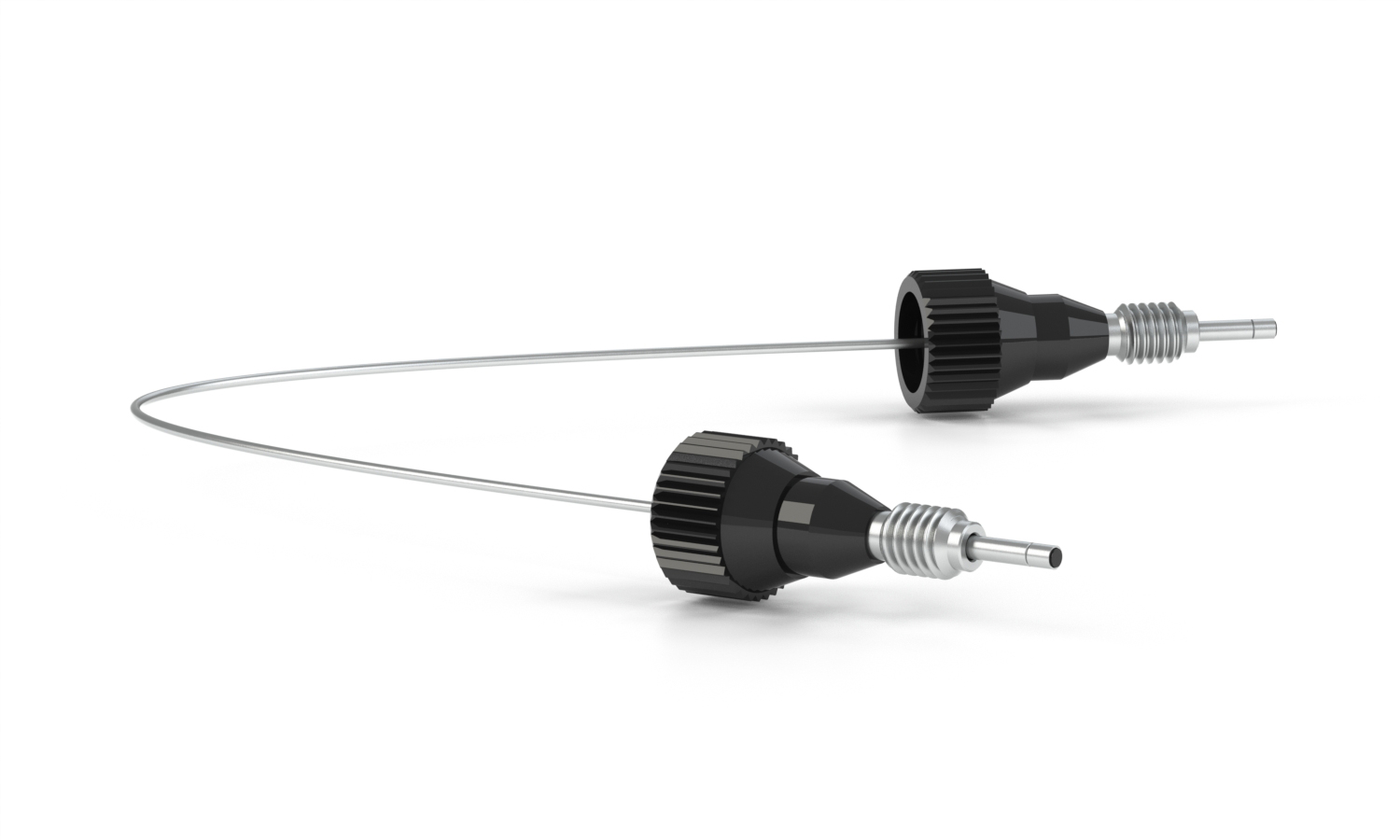

MarvelXACT™ Stainless Steel 100µm ID x 250mm Length


MarvelXACT™ Connection Systems have been expertly designed to eliminate the risk of under- or over-tightening with our patented torque limiting mechanism. This unique feature emits a haptic “click” feedback when it reaches the optimum torque. MarvelXACT™ incorporates our advanced MarvelX™ Sealing Technology to deliver precise face sealing (sealing at the port bottom), which eliminates additional internal volume, and minimizes carryover risk, peak tailing, and peak broadening. MarvelXACT™ incorporates flexible 1/32″ OD tubing for easy routing through your instrument, and can be connected and disconnected more than 100 times. The connection system is compatible with 10-32 coned receiving ports and is absolutely finger-tight – no tool required.

Additional information

Pressure Rating

19,000 psi (1,310 bar)

Tubing Length

250mm (9.8 in)

Tubing ID

100µm (0.004 in)

Installation Method

1/8 of a turn (45 degree angle) after the initial resistance

Wetted Materials

PEEK and 316 Stainless Steel

Max Temperature, ºC


Tubing Type

1/32" OD Flexible 316 Stainless Steel with 1/16" OD tube ends

Fitting Type

10-32 threaded torque limiting fittings
