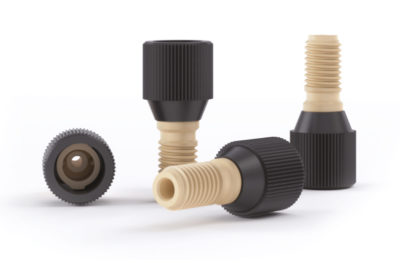

Intuitive™ Torque Limiting Fitting 1/8
Description
Our Intuitive™ fitting system from IDEX Health & Science for low pressure tubing assemblies, provides built-in torque control that enables high reproducibility and improved reliability of your connections. The torque limiting feature provides a haptic “click” feedback when it reaches the optimum torque, assuring a perfect connection every time.
Integrated with our custom tubing assemblies, the Intuitive™ fitting can be used in an instrument’s fluidic connections with the highest flexibility in mind. This universal fitting is used with 1/8” OD tubing and works with Flanged and Super Flangeless connection systems.
With a high reusability factor of about 80 “clicks,” this fitting ensures connection flexibility.
Additional information
| Fitting Type | 1/4-28 Torque Limiting PEEK™ Fitting |
|---|---|
| Installation Method | Finger-tighten until the first “click” feedback is received |
| Material | PEEK |
| Maximum Temperature ºC | 60°C |
| Max Operating Pressure psi | 300 |
| Tubing OD (in) | 1/8 |
| Tube Material Compability | ETFE, FEP, HPFA, PEEK, PFA, PTFE, Stainless Steel |
