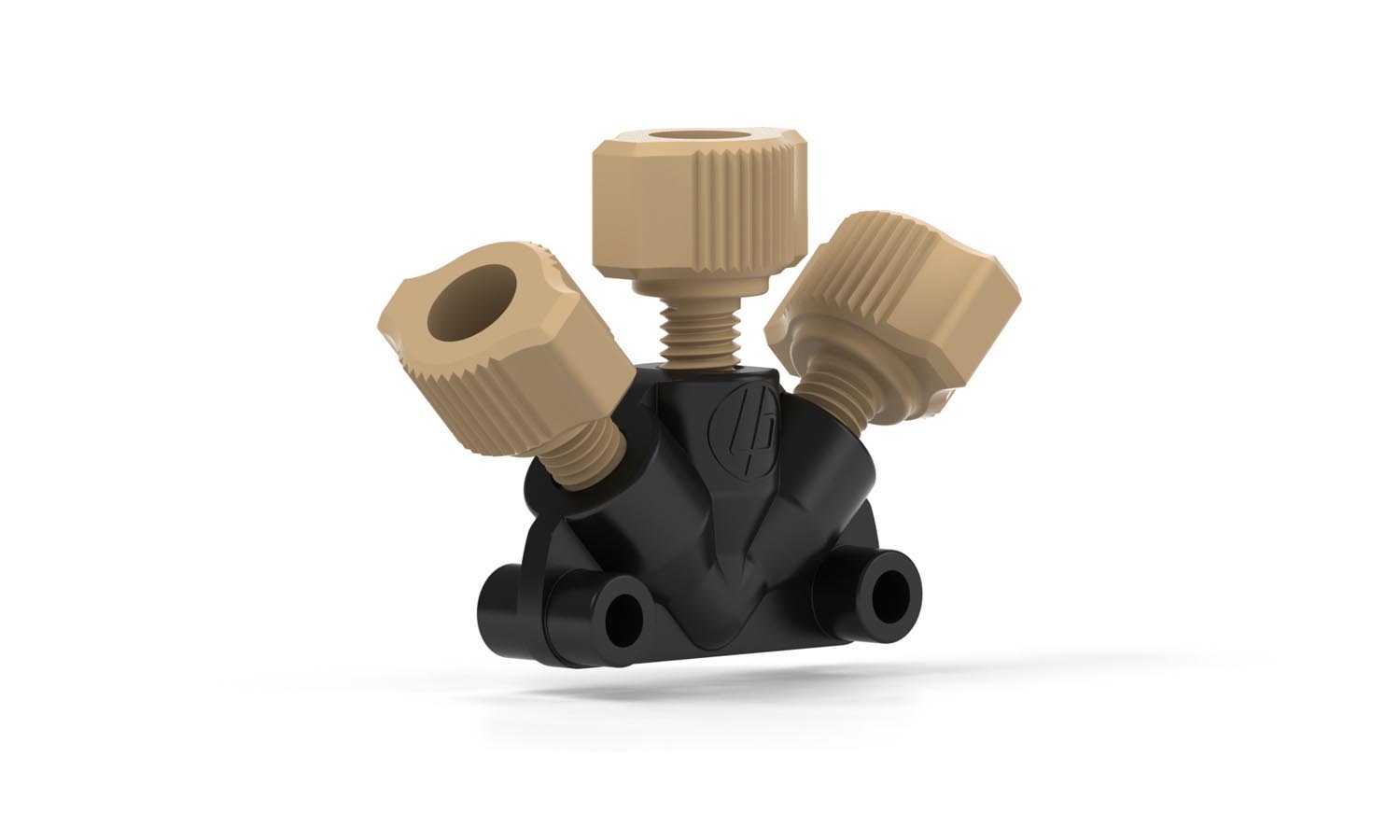

High Pressure Static Mixing Tee
Description
Our High Pressure Static Mixing Tees are ideal for microbore or analytical gradient HPLC. It delivers a low swept volume of 2.2uL (including frit volume). It’s body is made from biocompatible PEEK. It’s distinct material delivers excellent chemical resistance and is specifically designed to be inert to most solvents. Our Static Mixing Tee comes with a UHMWPE Frit and (3) F-300 Fingertight Fittings.
Additional information
| For Tubing OD (in) | 1/16 |
|---|---|
| Material | Stainless Steel |
| Pressure Rating Max (bar) | 345 |
| Pressure Rating Max (psi) | 5000 |
| Swept Volume (nL) | 2.2 |
| Thread Port Configuration Coned | 10-32 |
| Thru hole (in) | 0.020 |
| Thru hole (mm) | 0.50 |
