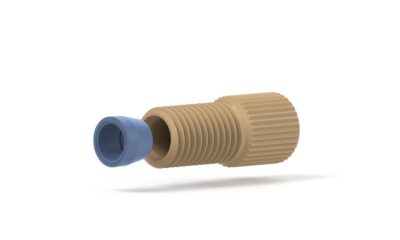

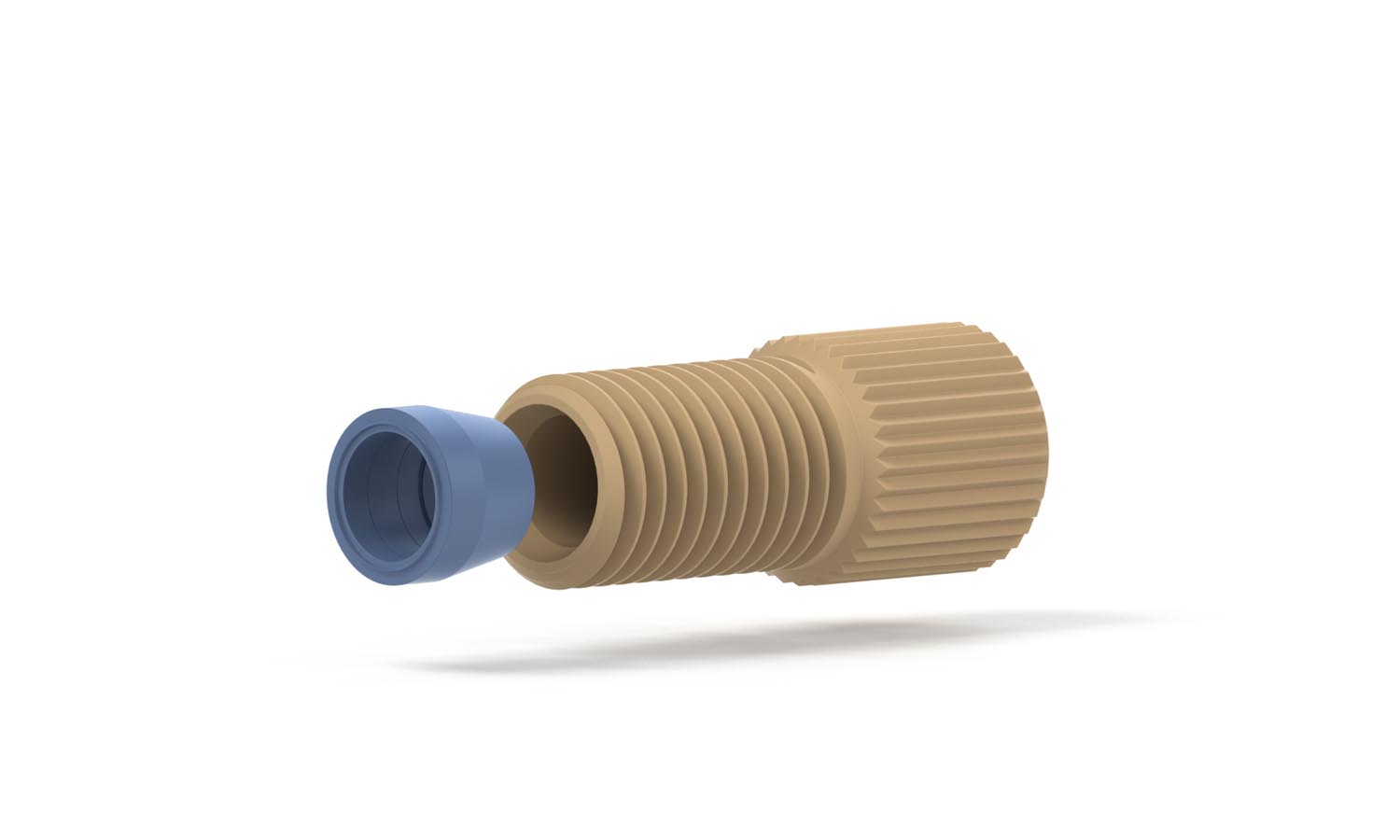

Flangeless Fitting PEEK 5/16-24 Flat-Bottom, for 4mm OD
Description
Our Flangeless PEEK Fittings are designed to include both a nut and ferrule for your convenience. Flangeless fittings are excellent replacements for flanged fittings. Flangeless fitting are dependable, easy to use and easy to replace. It has a 5/16-24 Flat-Bottom port configuration and is for 4mm OD tubing. Our Fitting System comes with the P-133. Brochure
Additional information
Color | Natural/Blue |
---|---|
For Tubing OD (mm) | 4 |
Head Style | Standard Knurl |
Material | PEEK/Tefzel (ETFE) |
Pressure Rating Max (bar) | 34 |
Pressure Rating Max (psi) | 500 |
Thread Port Configuration Flat-Bottom | 5/16-24 |
