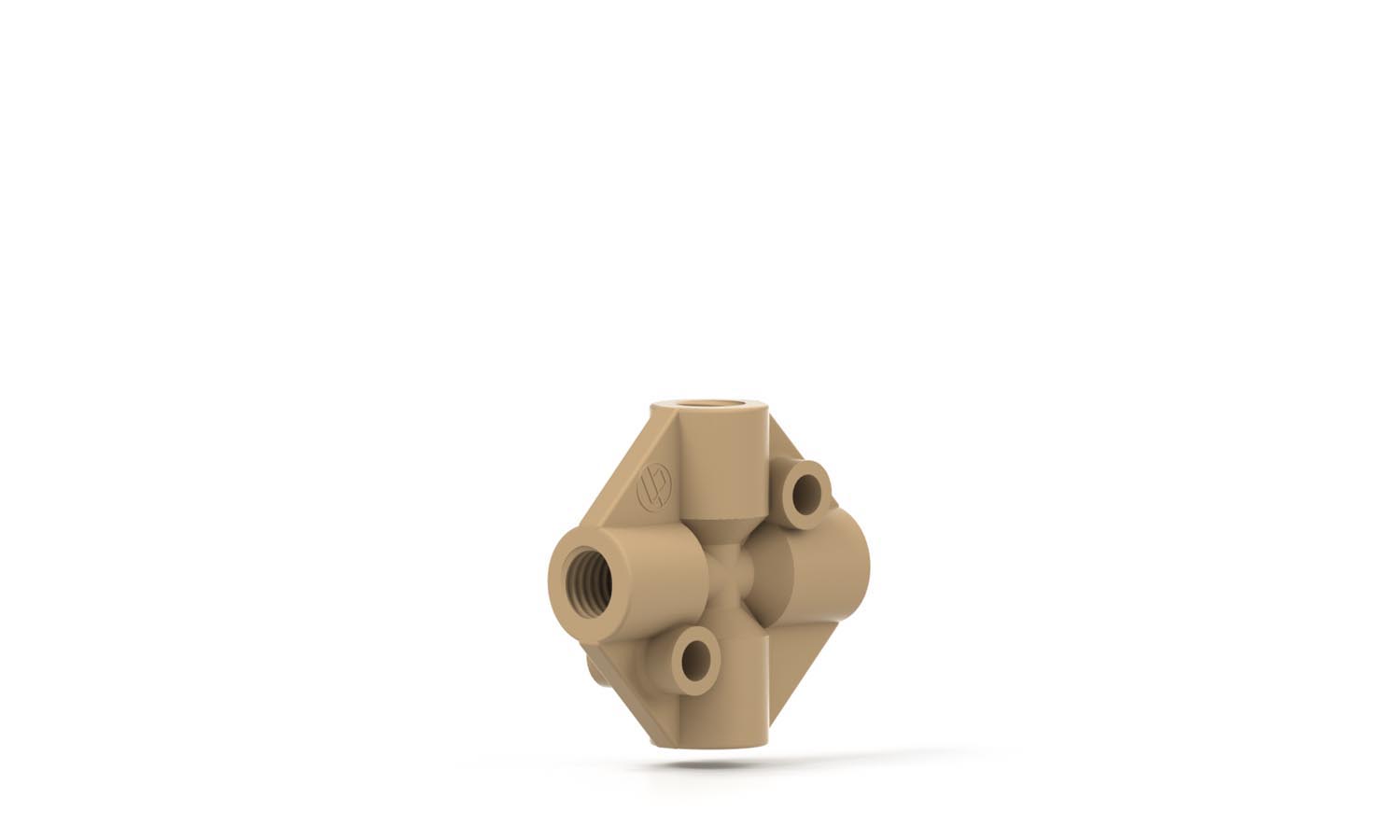

Cross Assembly PEEK .050in thru hole
Description
PEEK Low Pressure Cross Assembly is strong and has a durable handling at a pressure ratings of 1000 psi (69 bar). It has excellent chemical resistance to commonly used solvents. Our Cross assembly comes equipped with conveniently placed mounting holes. It includes (4) P-335 Nuts. Brochure
Additional information
| For Tubing OD (in) | 1/8 |
|---|---|
| Material | PEEK |
| Pressure Rating Max (bar) | 34 |
| Pressure Rating Max (psi) | 500 |
| Swept Volume (µL) | 22.8 |
| Thread Port Configuration Flat-Bottom | 1/4-28 |
| Thru hole (in) | 0.050 |
| Thru hole (mm) | 1.30 |
