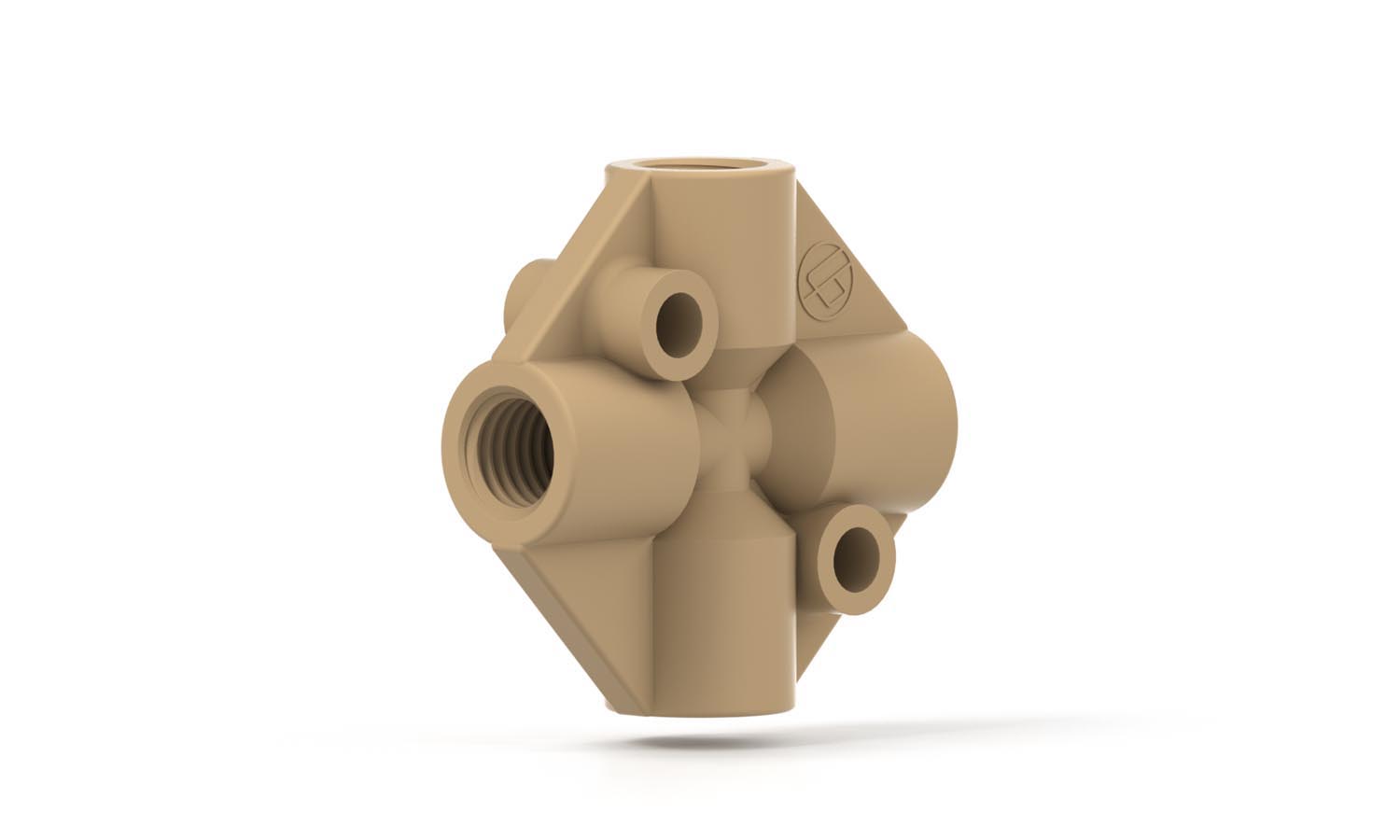

Cross Assembly PEEK .050 Hi Pressure
Description
PEEK High Pressure Cross Assembly is precisely designed to withstand environmental stresses in the high pressure regions of a system. It is made from inert PEEK, which is ideal for chemical resistance. It includes (4) F-301 Fingertight Fittings allowing maximum operating pressure to 3500 psi (241 bar) when used with 1/16″OD stainless steel or PEEK tubing. Brochure
Additional information
| For Tubing OD (in) | 1/16 |
|---|---|
| Material | PEEK |
| Pressure Rating Max (bar) | 241 |
| Pressure Rating Max (psi) | 3500 |
| Swept Volume (µL) | 3.53 |
| Thread Port Configuration Coned | 1/4-28 |
| Thru hole (in) | 0.050 |
| Thru hole (mm) | 0.50 |
