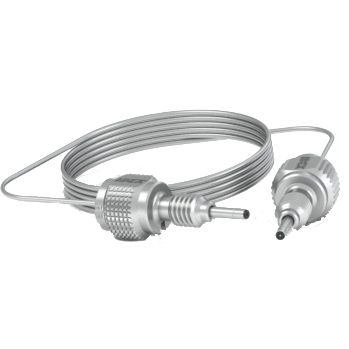

BioVersal™ Sample Loops – 20 μL PEEK Lined SST Sample Loop
BioVersal™ UHPLC sample loops are part of IDEX Health & Sciences bioinert UHPLC product family. These metal-free sample loops are ideal for bioinert UHPLC Applications. Each sample loop is made by utilizing IDEX’s PEEK lined stainless steel manufacturing process.
The PEEK lining reinforced by the stainless steel gives these sample loops the strength to withstand pressures up to 1310 bar (131 MPa; 19,000 psi), and makes the sample loop inert to almost all organic solvents. Each sample loop unitizes IDEX’s patented face sealing technology for zero dead volume connections into any port. Two fingertight MarvelX™ fittings are included with the sample loop can be connected and disconnected 100+ times.
PEEK Lined Stainless Steel, Biocompatible
|Maximum Temperature ºC||
|Max Operating Pressure Bar||
|Max Operating Pressure psi||
Finger Tight (~2 in lbs)
|Swept Volume (µL)||
|Tubing ID (µm)||
|Tubing OD (in)||
1/32 to 1/16 mating ends
PEEK Lined Stainless Steel (PLS)
