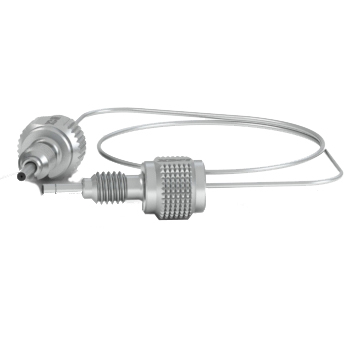

BioVersal™ Sample Loops – 10 μL PEEK Lined SST Sample Loop

SKU: UPFP-6010 Category:

Description

BioVersal™ UHPLC sample loops are part of IDEX Health & Sciences bioinert UHPLC product family. These metal-free sample loops are ideal for bioinert UHPLC Applications. Each sample loop is made by utilizing IDEX’s PEEK lined stainless steel manufacturing process.

The PEEK lining reinforced by the stainless steel gives these sample loops the strength to withstand pressures up to 1310 bar (131 MPa; 19,000 psi), and makes the sample loop inert to almost all organic solvents. Each sample loop unitizes IDEX’s patented face sealing technology for zero dead volume connections into any port. Two fingertight MarvelX™ fittings are included with the sample loop can be connected and disconnected 100+ times.

Additional information

Fitting Type

MarvelX

Installation Method

Finger Tight

Material

PEEK Lined Stainless Steel, Biocompatible

Maximum Temperature ºC

120ºC

Max Operating Pressure Bar

1310

Max Operating Pressure psi

19,000

Required Torque

Finger Tight (~2 in lbs)

Swept Volume (µL)

µL,10

Thread Callout

10-32

Tubing ID (µm)

320

Tubing OD (in)

1/32 to 1/16 mating ends

Tubing Type

PEEK Lined Stainless Steel (PLS)

Wetted Materials

PEEK
