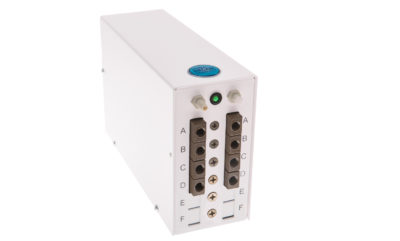

Biotech DEGASi® Compact Degasser, 4-channel 285 µl Systec AF
Description
DEGASi Compact is available with 2, 4 or 6 degassing channels in a housing with only 167 x 56 mm footprint. This is possible due to the development of a new single stage vacuum pump with a small built in control board and new 285 µl Systec AF(tm) vacuum chambers. Closed-loop control with a continuously running vacuum pump gives a very smooth baseline. The speed of the pump is varied to maintain an exact vacuum level inside the vacuum chambers. The degasser is equipped with built in error detection functionalities. A bi-color diode on the front panel gives information about the performance.
Additional information
Chemical Compatibility | See Solvent Compatibility Chart |
---|---|
Height (mm) | 107 |
Length (mm) | 167 |
Membrane Type | Systec AF |
# of Channels | 4 |
Power Requirements | 100-240V AC 1A 50 to 60hz |
Pressure Rating Max (psi) | 70 |
Recommended Flow Rate (ml/min) | 2 |
Tubing ID (in) | 0.035 |
Tubing ID (mm) | 0.89 |
Vacuum Flow Path Materials | Stainless Steel, Polypropylene, PTFE, EPDM Rubber, PPS |
Wetted Materials | Systec AF, PPS, PEEK and Glass-filled PTFE |
Width (mm) | 56 |
