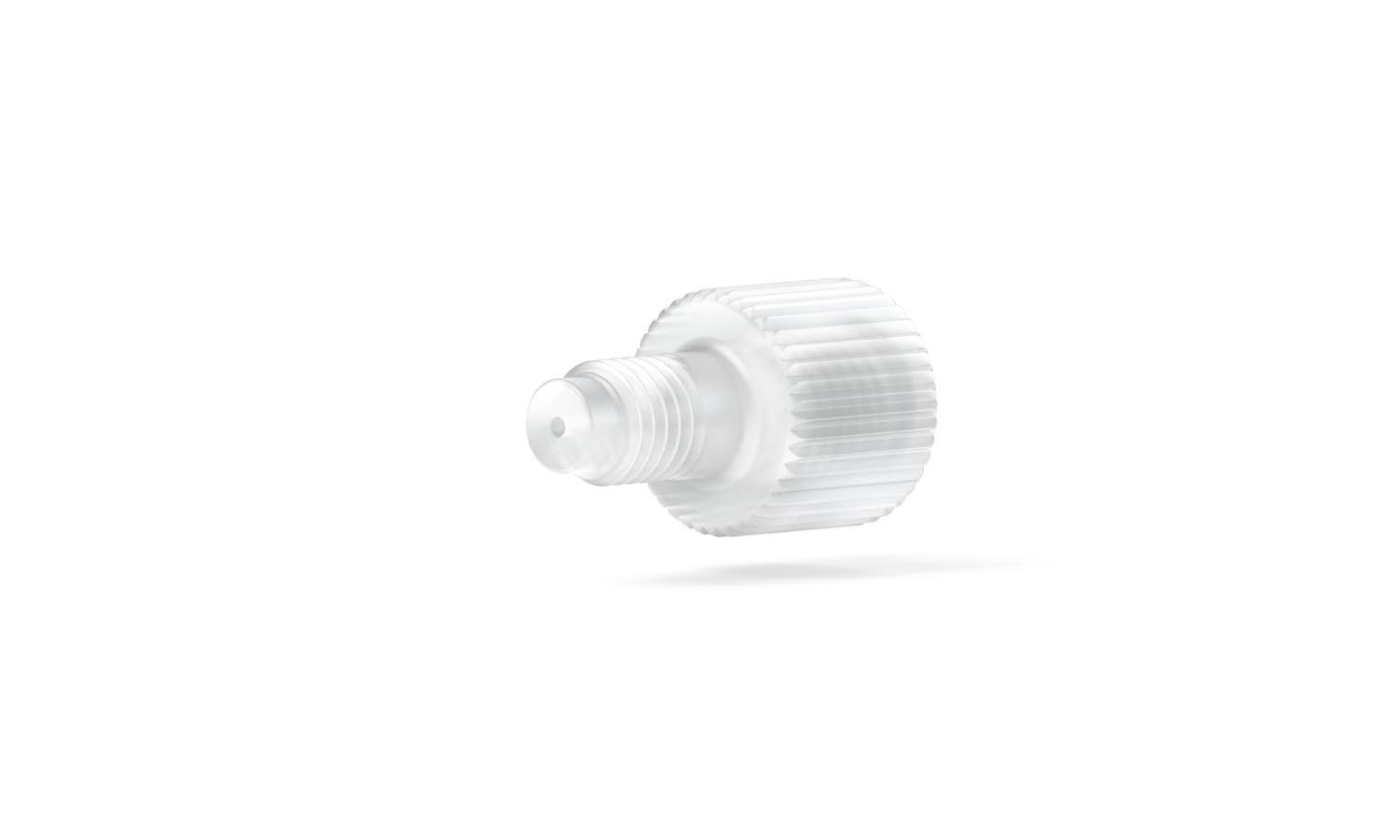

Adapter 5/16-24 Female x1/4-28 Male
Description
Our versatile English Threaded Adapter is used specifically to attach connectors with different threads. It is made from inert PTFE giving it excellent chemical resistance. It has a Female 5/16-24 to Male 1/4-28 Flat-Bottom port configuration. It come in natural color and It doesn’t include fittings. Brochure
Additional information
| Color | Natural |
|---|---|
| Material | PCTFE |
| Pressure Rating Max (bar) | 69 |
| Pressure Rating Max (psi) | 1000 |
| Thread Port Configuration Flat-Bottom | 5/16 to M6 |
| Thread to Thread | Female to Male |
| Thru hole (in) | 0.040 |
| Thru hole (mm) | 1.00 |
