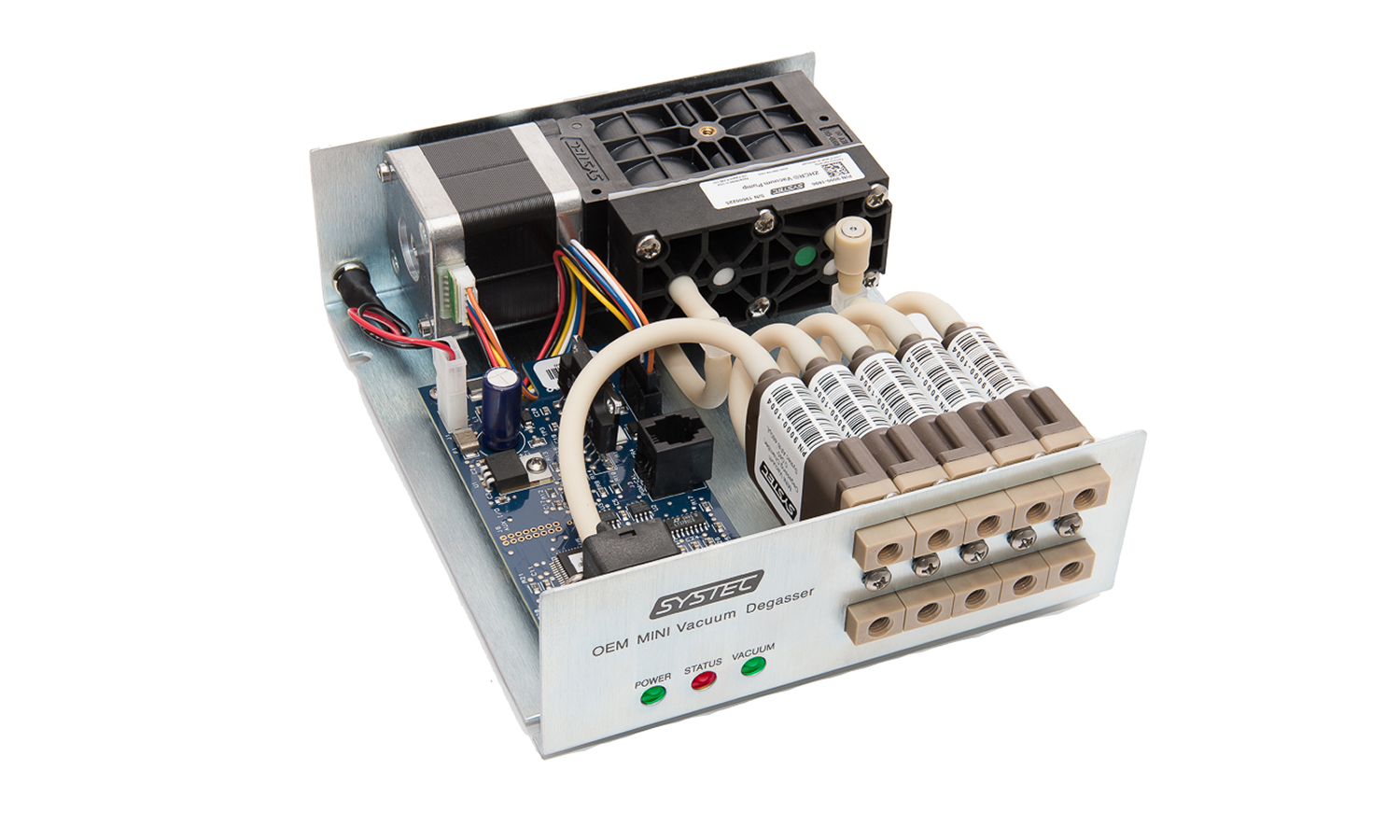

5 Channel OEM Mini Degasing Module, 925 µl Systec AF


Our Sytec OEM MINI is a compact degassing system designed to remove dissolved gas and eliminate retention shifts and increase baseline stability with liquid chromatography. The open frame format is designed to be easily integrated into virtually any existing LC pump, degassing tray, or stand-alone degassing application. This module is available with a CE approved wall transformer and adapters for international power. IDEX SKU: 0001-6380

Additional information

Chemical Compatibility

See Solvent Compatibility Chart

Height (in)


Length (in)


Liquid Connections

1/4-28 UNF, Expected Lifetime – >6 years (100 RPM 12 hours/day 365 days/year)

Membrane Type

Systec AF

# of Channels


Power Requirements

24 VDC @ 0.75 Amp max (< 5 Watts consumption average)

Tubing ID (in)


Tubing ID (mm)


Vacuum Connection

Barb connector for 1/8” ID elastomeric Tubing

Vacuum Flow Path Materials

303 Stainless Steel, Polypropylene, PTFE, EPDM Rubber

Wetted Materials

Systec AF, PEEK and Glass-filled PTFE

Width (in)
